Product Description
XCMG Crane QY70K, Used Truck Cranes From China
Product Introduction
XCMG QY70K crane is a high-performance truck crane produced by XCMG Group. The following is a detailed introduction of the crane:
1, Basic parameters
Total length of the machine: 13500mm (some say it is 13930mm, which may vary depending on the product batch or configuration)
Overall width of the machine: 2800mm
Overall height of the whole machine: 3540mm (some say it is 3575mm, which may also vary depending on the product batch or configuration)
Overall weight: The overall weight of the vehicle in driving condition is 43000kg
2, Power parameters
Engine model: WD615.338 (National III)
Rated power: 276kW/2200rpm
Rated torque: 1500N · m/1400rpm
3, Lifting performance
Maximum rated lifting capacity: 70t
Maximum rated lifting torque: 2303kN · m
Crane arm length:
Basic arm: 11.2m (some say 11.6m)
Fully extended arm: 42m (some say 44.5m)
Longest main arm+auxiliary arm: 58m (mentioned in the QY70K-I hydraulic control model, not directly mentioned in the QY70K model, but it can be inferred from the configuration that it may have similar or longer auxiliary arm configuration capabilities)
Secondary boom length: varies depending on different configurations, generally between 15m and 16m
Homework speed:
Full extension time of crane arm: ≤ 150s
Crane boom amplitude time: varies depending on specific configuration and operating conditions, generally within a reasonable range
Rotation speed: ≥ 2.0r/min (specific value may vary depending on product configuration)
4, Driving performance
Maximum driving speed: 75km/h (some say 80km/h, may vary depending on product batch or configuration)
Minimum turning radius: 12m (also known as a minimum turning diameter of 24m, both reflecting the maneuverability of the crane in narrow spaces)
Maximum climbing gradient: ≥ 40%
Approach angle/departure angle: 19 ° and 13 ° respectively (or approach angle 19 °, departure angle may vary depending on specific configuration)
Minimum ground clearance: 270mm (alternatively referred to as 327mm, may vary depending on product batch or configuration)
5, Other characteristics
Crane arm system: using elliptical cross-section (or "U" - shaped cross-section, mentioned in QY70K-I hydraulic control type) crane arm, strong torsional resistance, and reasonable force transmission. New materials such as WELDOX960 ultra-high strength steel are widely used, which not only meet high performance requirements but also effectively reduce the overall weight of the machine.
Telescopic technology: With proprietary telescopic technology, it avoids safety issues such as core tube bending, oil cylinder bending, and arm frame breakage caused by misoperation.
Torque limiter: It adopts a color LCD display to achieve intelligent fault diagnosis, with precision leading the industry.
Comfortable operation: The design of the driver's cab and control room is humanized, with larger space and flexible and easy operation. Equipped with cold and warm air conditioning to provide a comfortable operating environment.
Chassis power: High power environmentally friendly engines are selected for superior driving performance.
Product parameters table:
| product name |
Used XCMG crane |
| country of origin |
China |
|
| Product model |
QY70K-II |
| Dimensions |
13500mm*8280mm*3540mm |
| Engine model |
WD615.338 |
| Rated lifting capacity |
70 Ton |
|
| Basic arm |
11.2m |
|
| Fully extended arm |
42m |
|
| Longest main arm+auxiliary arm |
58m |
|
| Rated power (kW/rpm) |
276kW/2200rpm |
|
| Full extension time of crane arm |
≤ 150s |
|
| Secondary boom length |
16m |
|

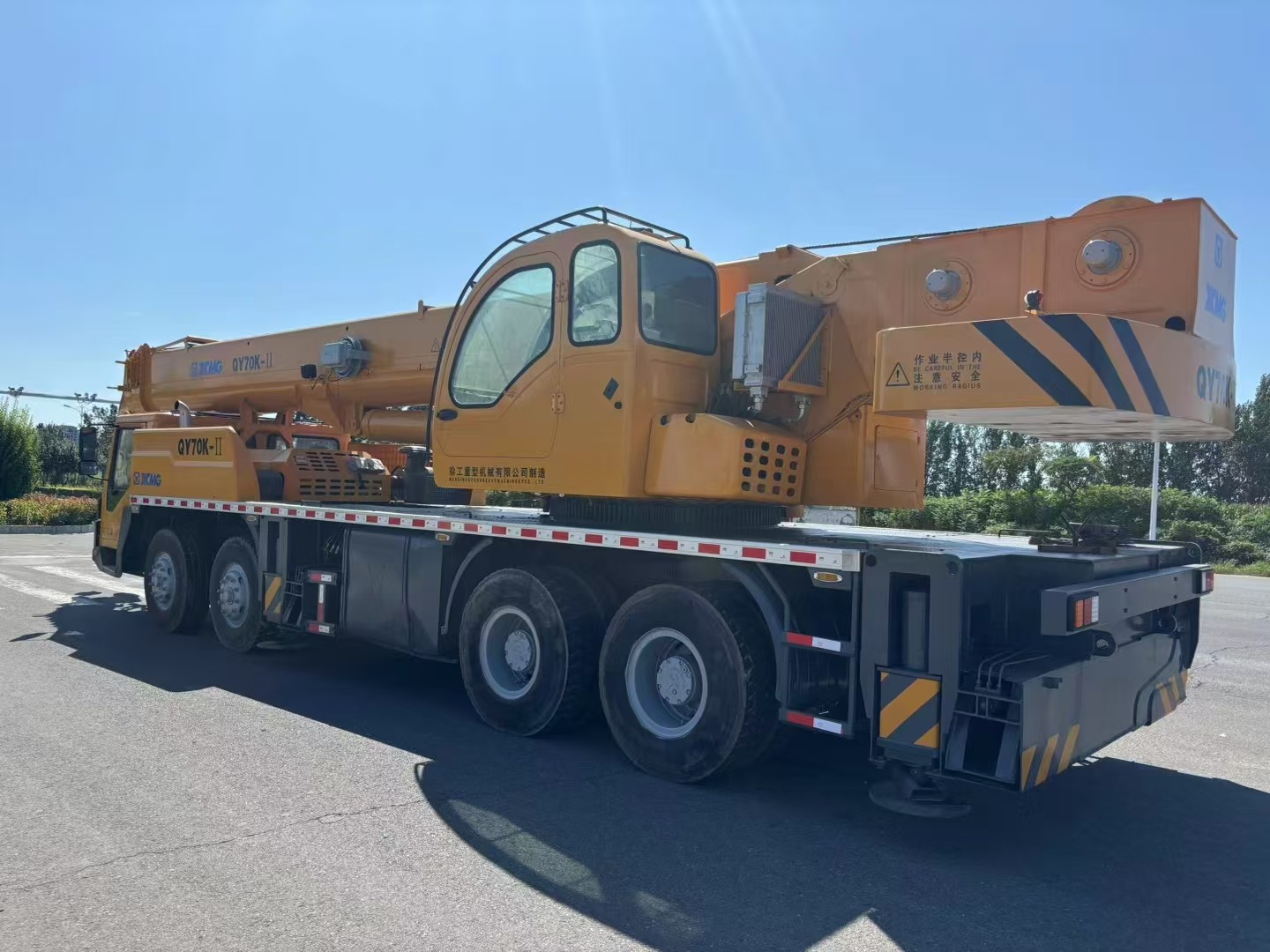

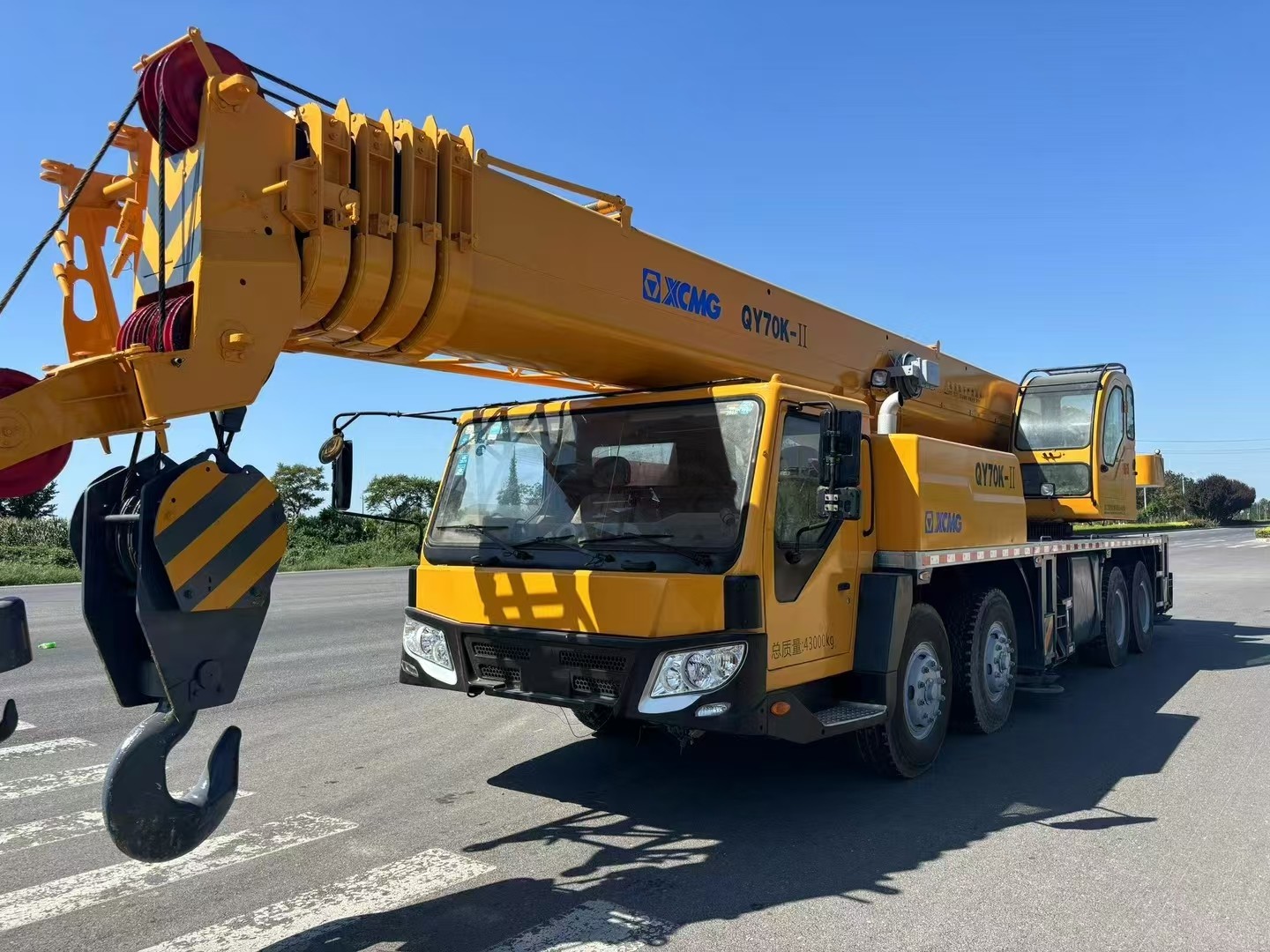

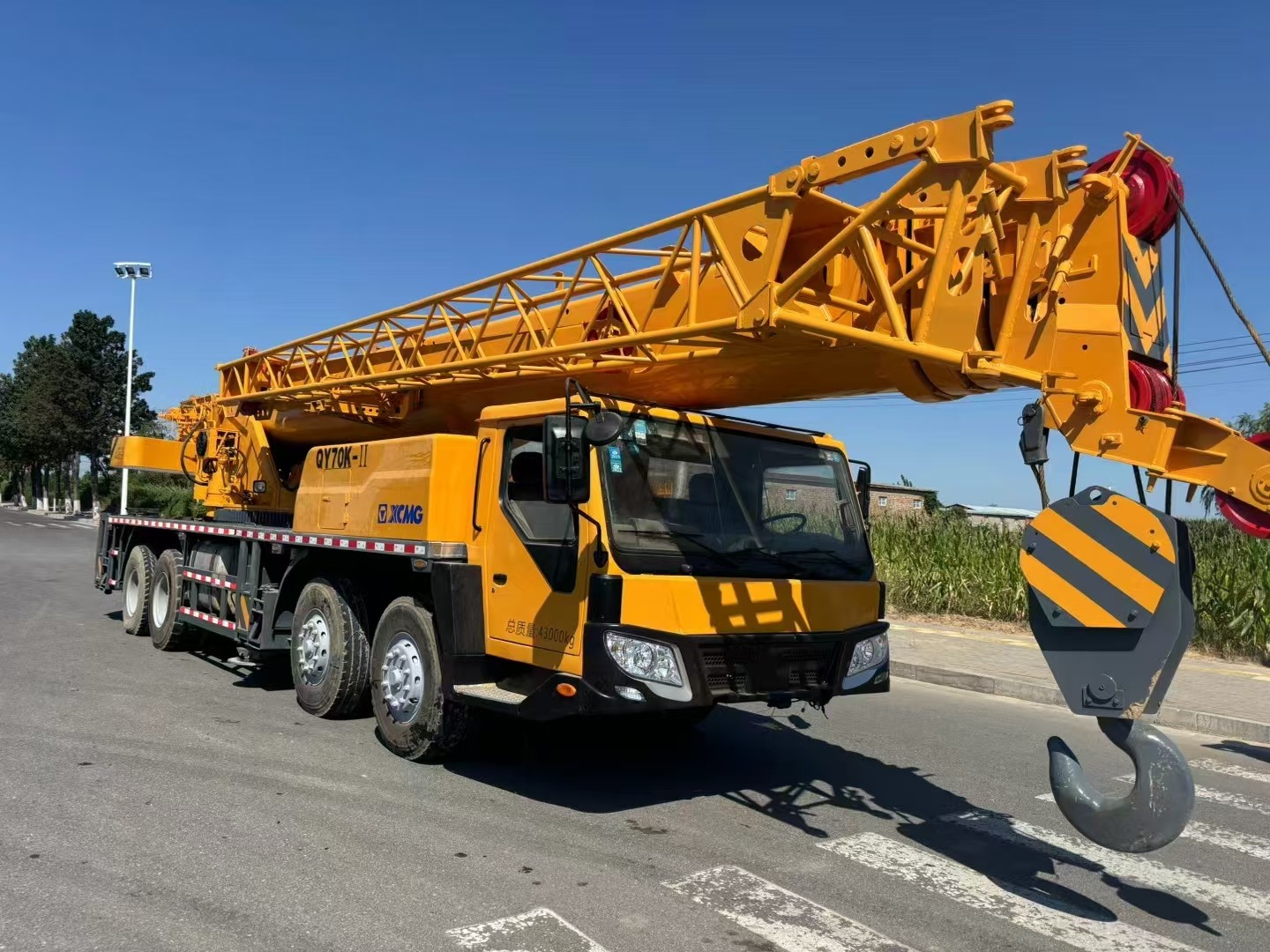

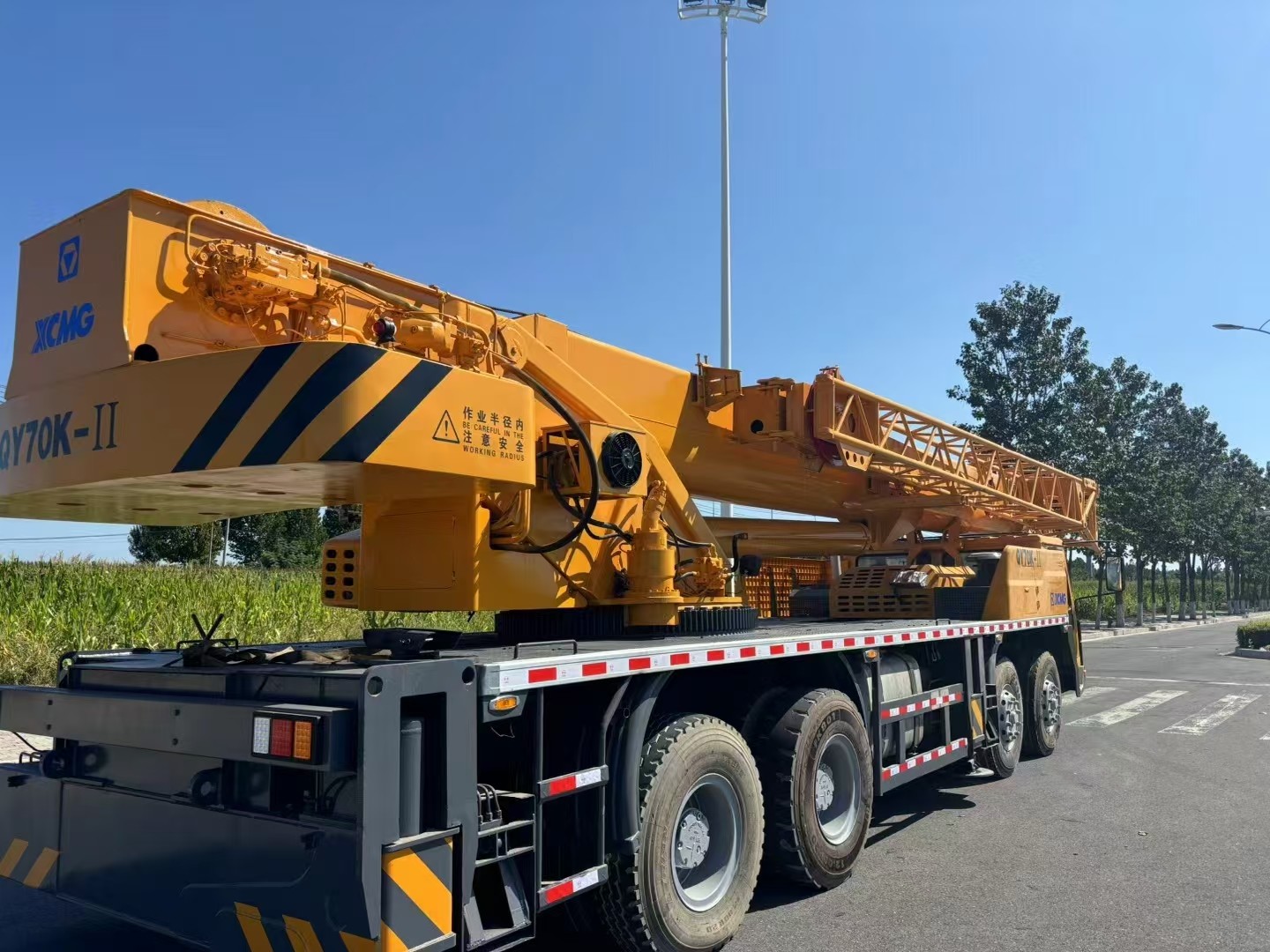

Product Photos
