Chinese XCMG Crane XCA300, 300 Ton Used Truck Cranes

Product Description

                 High quality used Chinese crane , XCMG XCA300 truck crane for sale in Africa

Product Introduction

XCMG XCA300 crane, also known as XCMG XCA300 all ground crane, is a heavy-duty lifting equipment with excellent performance and advanced technology. The following is a detailed introduction to the crane:

1, Basic parameters
Equipment model: XCA300
Model abbreviation: 300
Total length of the machine: 17674mm
Overall width of the machine: 3000mm
Overall height of the machine: 4000mm
Wheelbase: 1650+3100+1650+2440+1650mm
Track width: 2590/2540mm
Total weight in driving condition: 72000kg
Axle load: 12000 × 6kg
2, Power parameters
Engine model (onboard): OM906LA E3A/1
Rated power: 205kW/2200r/min
Rated torque: 1100N · m/1200~1600r/min
Engine model (off car): OM502LA.E3B/2
Rated power: 440kW/1800r/min
Rated torque: 2800N · m/1300r/min
3, Working parameters
Maximum rated total lifting capacity: 300t
Maximum lifting torque of the basic arm: 9270kN · m
Turntable tail turning radius: 3690mm
Longitudinal span of supporting legs: 8.93m
Lateral span of leg (half extension): 8.53m (or 5.6m, depending on specific configuration)
Maximum lifting height (basic arm): 16.3m
Longest main arm: 80m (some say 79.1m, may vary slightly due to different configurations or measurement methods)
Longest main arm+auxiliary arm: 112.8m
4, Driving parameters
Maximum driving speed: 80km/h
Minimum stable driving speed: 2km/h
Minimum turning diameter: 23m
Maximum climbing gradient: 57%
Minimum ground clearance: 280mm (also known as 500mm ground clearance improvement, which may be achieved under specific technologies or operating conditions)
Approach angle: 16 °
Departure angle: 15 °
Braking distance (on dry and flat asphalt or concrete roads, at a speed of 30km/h): ≤ 10m
Fuel consumption per 100 kilometers: 89.2L
5, Technical features and advantages
Optimization design and lifting performance: The overall optimization design of the whole machine, including the comprehensive optimization of key components such as the boom, turntable, and frame, makes the layout more reasonable, and improves the lifting performance of similar products by 5% to 15%.
Six section arm design: Breaking through the limitation of five section telescopic arms for 50 ton crane products, it can be raised to six section arms with an extended arm length of 50 meters (or longer) to meet a wider range of operational needs.
Adaptive ground conditions: The left and right wheels move independently, and compared to conventional integral axles, the vehicle's handling performance during high-speed turns is improved by 15%.
Efficient power system: The entire machine only uses one engine system, optimizing the distribution of the weight of the on-board power part and improving lifting performance by 15%; Simultaneously reducing maintenance costs, saving over 40% of annual maintenance expenses.
Heavy load transition capability: During heavy load transition, the power of the onboard engine is introduced into the vehicle, matched with a dedicated hydraulic reducer independently developed by XCMG. The output torque is increased by three times, and the climbing ability is improved to over 30%.
Human Computer Interaction System: The industry's first human-machine interaction system that reaches the level of a sedan, enabling friendly dialogue between operators and vehicles, making operation easier and more convenient.
Efficient self disassembly and assembly transition design: The system can be disassembled and assembled without the need for auxiliary vehicles, saving personnel and auxiliary transportation costs, and reducing transition time by 20%.
Intelligent control and safety performance: Multi mode driving technology achieves real-time intelligent control based on road conditions, improving the safety and reliability of vehicle operation; Dynamically calculate axle load and vehicle center of gravity position, and automatically match the corresponding highest gear and axle drive mode in real-time.
In summary, the XCMG XCA300 crane has become a leader in the field of heavy lifting equipment due to its outstanding performance, advanced technology, and wide application areas. Whether in terms of basic parameters, power parameters, working parameters, or technical characteristics and advantages, it has demonstrated strong market competitiveness and practical application value.

Product parameters table

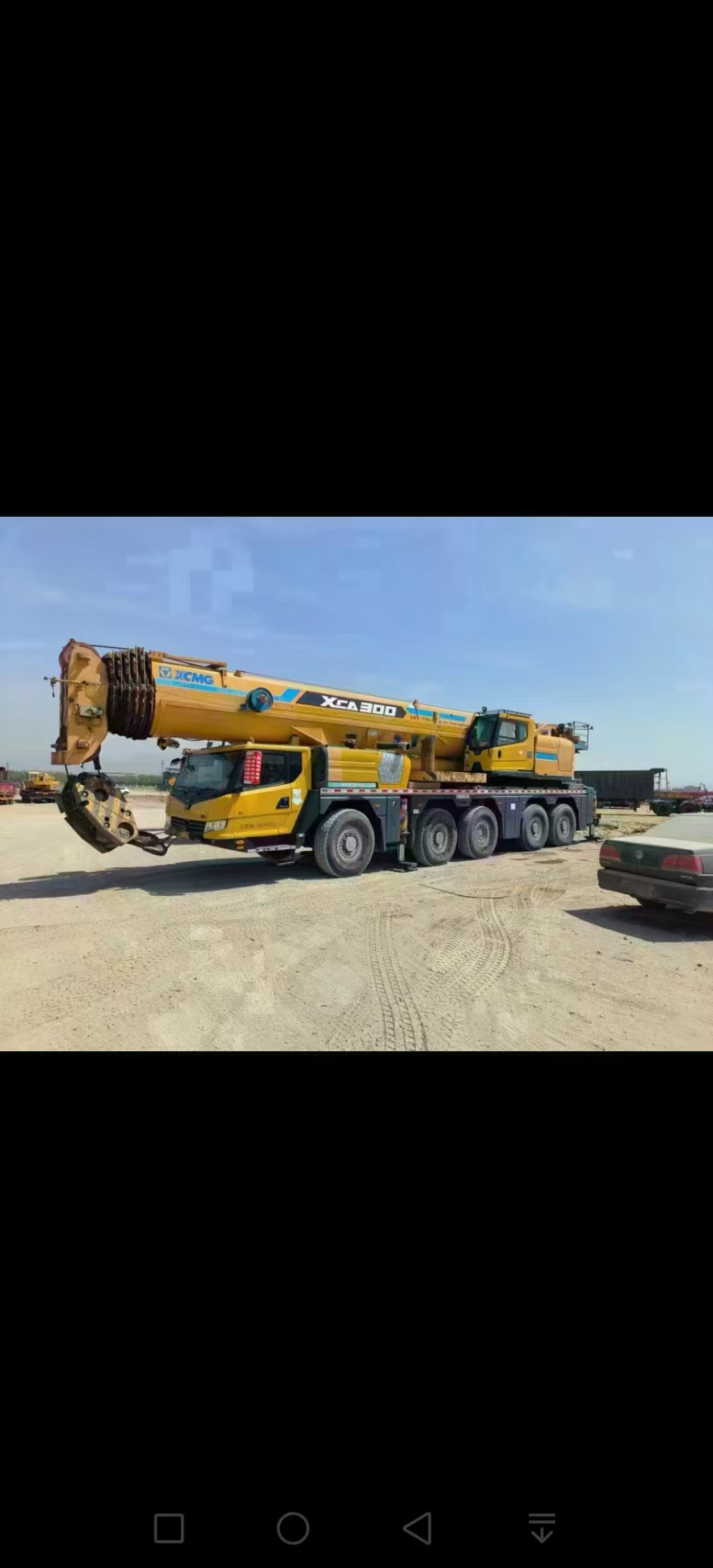

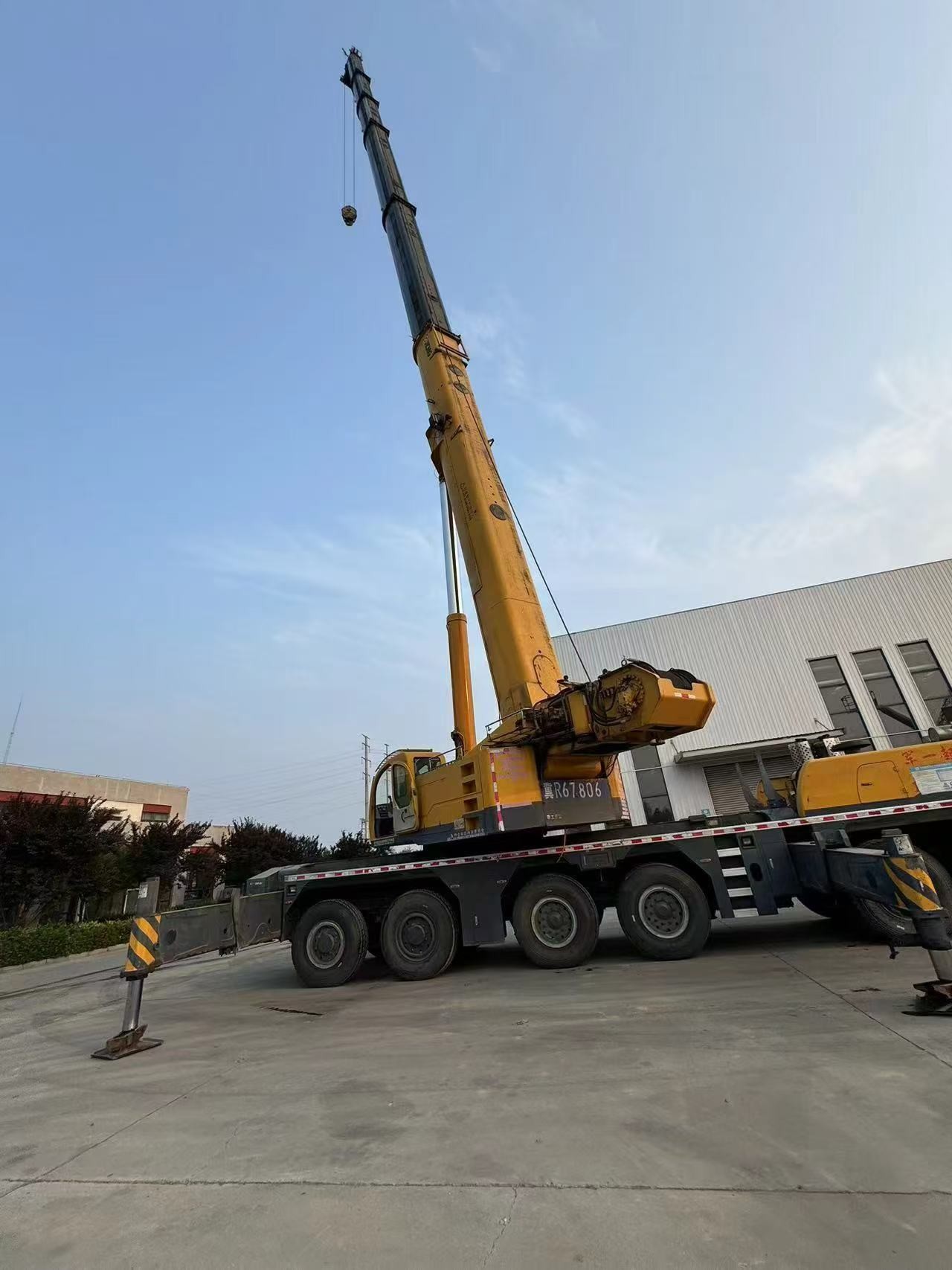

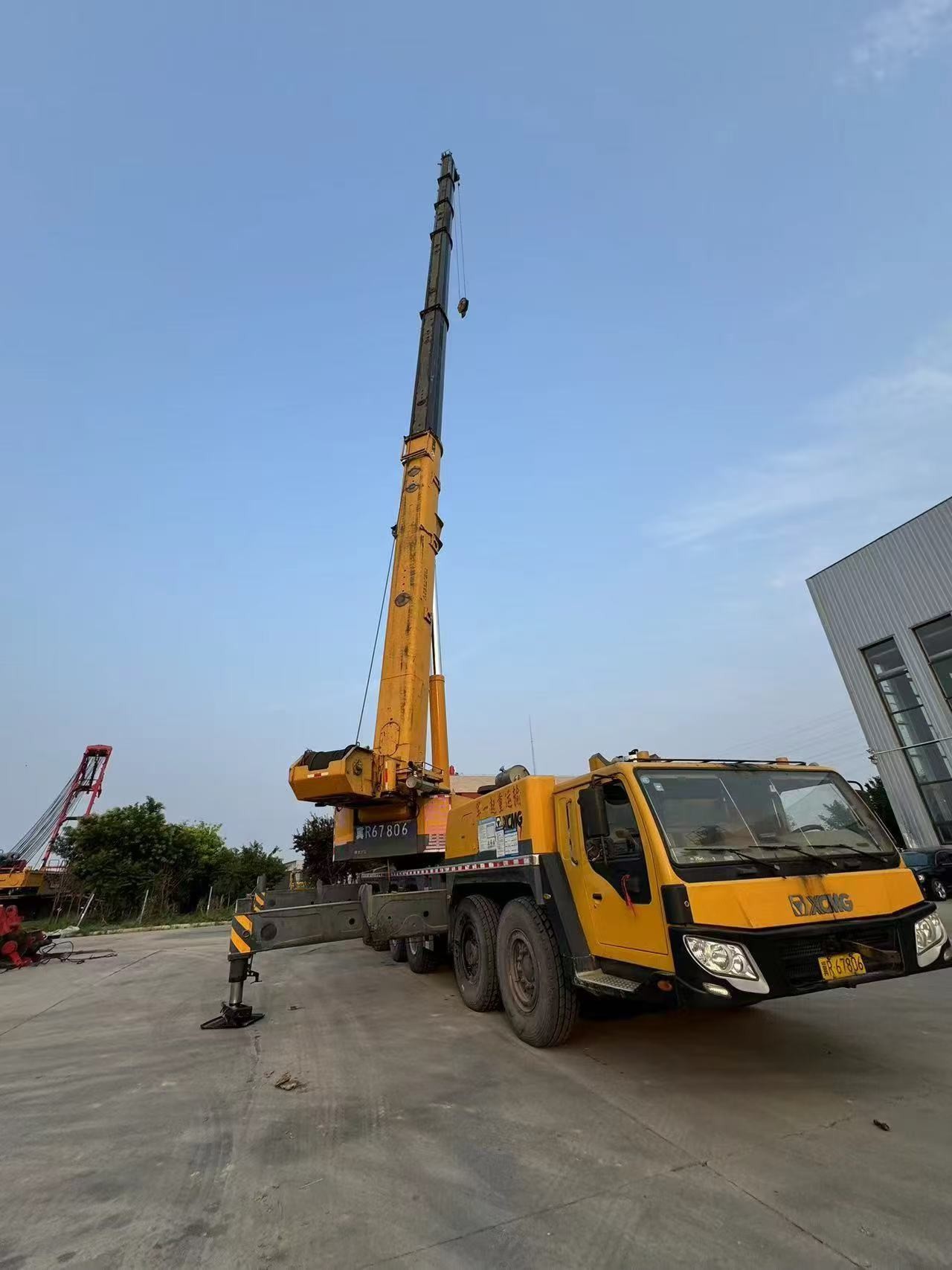

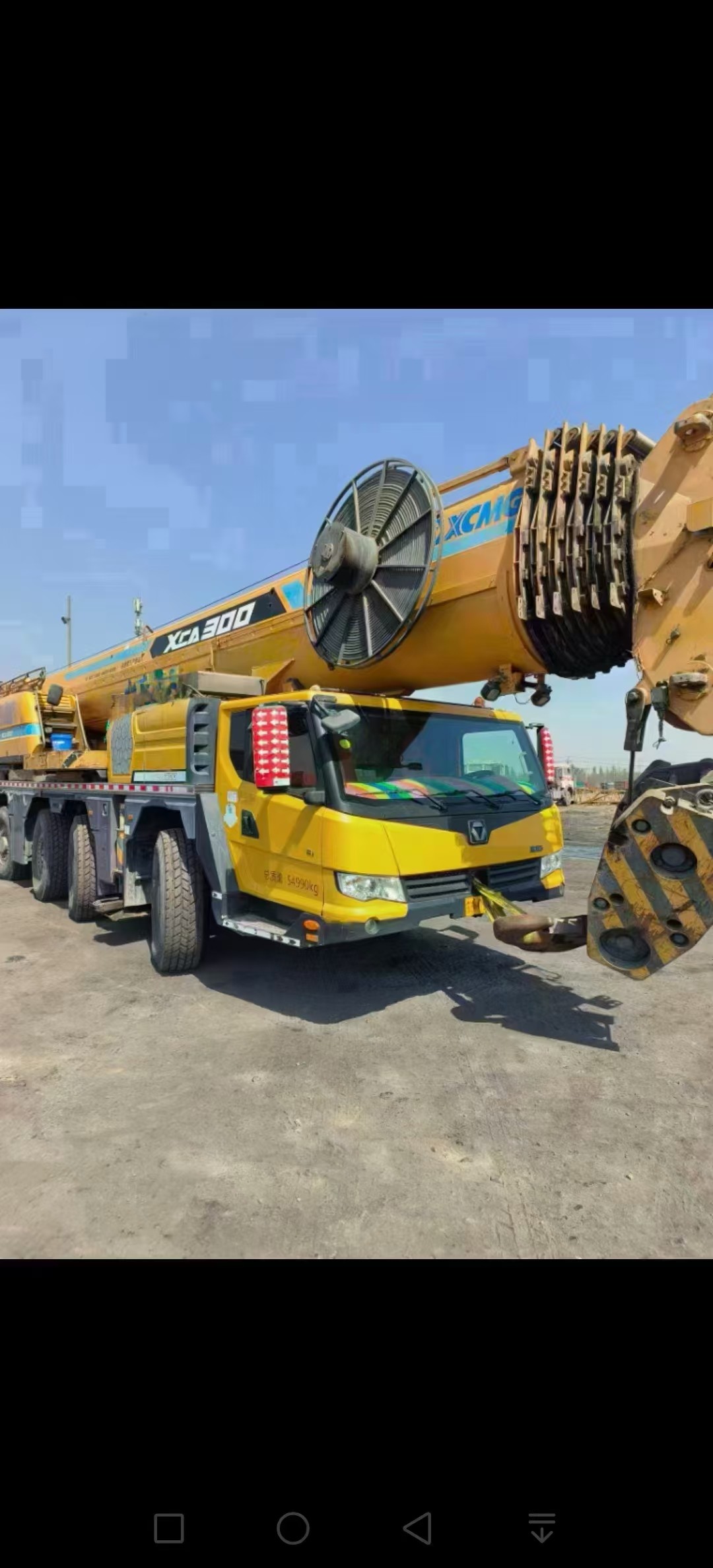

Product Photos
