High quality second-hand Cat 320D2 excavator
High quality second-hand Cat 320D2 excavator High quality second-hand Cat 320D2 excavator High quality second-hand Cat 320D2 excavator High quality second-hand Cat 320D2 excavator High quality second-hand Cat 320D2 excavator
Contact Now

High quality second-hand Cat 320D2 excavator

Minimum Order Quantity : 1 unit Price : Negotiation
Packaging Details : 1. Flat rack is better for bigger construction equipmennt and no need to dismantle. 2.Container is cheapest and fast. 3.Bulk cargo ship is better for bigger construction equipment. 4. Ro-Ro ship is faster and good for every kinds machine Delivery Time : 7-20 work days
Payment Terms : L/C, T/T Supply Ability : 3000 units per year
Place of Origin: China Brand Name: Cat
Model Number: 320D2

Detail Information
Powerful Engine: Robust Engine Sysyem: Hydraulic
Spacious Cab: Ergonomic Controls Advanced Technology: Advanced Monitoring And Diagnostic Systems
Fuel Efficiency: Strong Emphasis Model: 320D2

Product Description

                                      Affordable second-hand Cat 320D2L excavator in Dubai





Product introduction



The Cat 320D2 excavator, also known as the Caterpillar 320D2 excavator, is a hydraulic excavator launched by Caterpillar Inc. It is an improved model after the CAT320D. The following is a detailed introduction to the Cat 320D2 excavator:

1, Engine
model: Cat ® C7.1.
Rated power: 104 kW/rpm
Displacement: 7.01L.
Number of cylinders: 6 cylinders.
Cylinder diameter x stroke: 105mm x 135mm.
Cooling method: Water cooling.
Emission standards: Complies with the equivalent emission standards of Tier 3 in the United States, Stage IIIA in the European Union, and China's non road country III emission standards.
2, Whole machine parameters
Operating weight of the whole machine: 21040~21690kg
Bucket capacity: 1.0 cubic meter.
Arm length: 5700mm.
Rod length: 2500/2900mm (HD type).
3, Performance parameters
Rotation speed: 109rpm.
Rotation torque: 61.8kN · m.
Walking speed: 5.4Km/h.
Climbing ability: 70%/35 °.

Maximum traction force: 205.0kN.
4, Hydraulic system
Main pump type: Caterpillar axial piston pump+pilot pump.
Maximum flow rate of the main pump: 404L/min.
Main overflow set pressure: 34.3MPa
Rotary hydraulic circuit pressure: 25MPa.
Hydraulic circuit pressure for walking: 34.3MPa.
Pilot oil circuit pressure: 39MPa.
Pilot pump flow rate: 32.4L/min.
5, Oil capacity
Fuel tank capacity: 410L.
Hydraulic oil tank capacity: 138L
Engine oil change quantity: usually about 22L
Coolant capacity: 28L
6, Main body size
Total transportation length: 9460mm.
Total transportation width: 2800mm.
Total transportation height: 3030mm.
Full height of the cab: 3090mm.
Boarding width: 2800mm.
Ground clearance of counterweight: 1020mm.
Track grounding length: 3270mm.
Total length of track: 4080mm.
Track shoe width: 600/700/790mm.
Total track width: 2800mm (600mm track shoes).
Track gauge: 2200mm.
Minimum ground clearance: 450mm.
7, Scope of homework
The operating range of Cat 320D2 excavator varies depending on its configuration. Here are some common operating range parameters:

HD standard boom+R2.5 (8'2 ") B1 HD standard boom: bucket tooth tip radius 1560mm, maximum excavation depth 6300mm, maximum extension distance on flat ground 9470mm, maximum loading height 6290mm.
HD standard boom+R2.9 (9'6 ") B1 HD standard boom: bucket tooth tip radius 1560mm, maximum excavation depth 6720mm (also data shows 6660mm), maximum extension distance on flat ground 9890mm, maximum loading height 6490mm.
Ultra long extension boom+6.28M (20'7 ") ultra long extension arm: bucket tooth tip radius 1230mm, maximum excavation depth 11880mm, maximum extension distance on flat ground 15730mm, maximum loading height 11010mm.

8, Other characteristics
The Cat 320D2 excavator has better fuel applicability, with its engine and hydraulic system optimized to improve work efficiency and reduce operating costs. In addition, the excavator is equipped with advanced control systems and a comfortable cab, providing operators with a better working environment and handling experience.

Overall, the Cat 320D2 excavator is a hydraulic excavator with excellent performance, easy operation, and convenient maintenance, suitable for various construction scenarios.

Technical parameters



Technical Parameters Specifications
Model Cat 320D2L
Operating Weight 21,100 - 21,700 kg
Engine Cat C7.1 ACERT™
Gross Power 114 kW (153 hp)
Net Power 109 kW (147 hp) @ 1800 rpm
Displacement 7.01 L (428 cu in)
Hydraulic System - Main Pump Type: Variable piston pump
  - Maximum Flow: 404 L/min (107 gpm)
  - Maximum Pressure: 34.5 MPa (4980 psi)
Travel Speed 5.4 km/h (3.4 mph)
Swing Speed 10.9 rpm
Bucket Capacity 1.0 m³ (1.31 yd³)
Maximum Digging Depth 6720 mm (22 ft)
Maximum Reach 9890 mm (32 ft 5 in)
Maximum Dumping Height 6490 mm (21 ft 3 in)
Undercarriage Type Tracked
Track Shoe Width 600 mm (23.6 in)
Track Gauge 2200 mm (7 ft 3 in)
Ground Pressure 53.6 kPa (7.8 psi)
Fuel Tank Capacity 410 L (108 US gal)
Hydraulic Oil Tank Capacity 138 L (36.5 US gal)
Cooling System Engine driven, radial fan
Cabin Features - Air conditioning
  - Heater
  - 12V power socket
  - AM/FM radio
Dimensions (L x W x H) 9460 x 2800 x 3030 mm (31 ft x 9 ft 2 in x 9 ft 11 in)

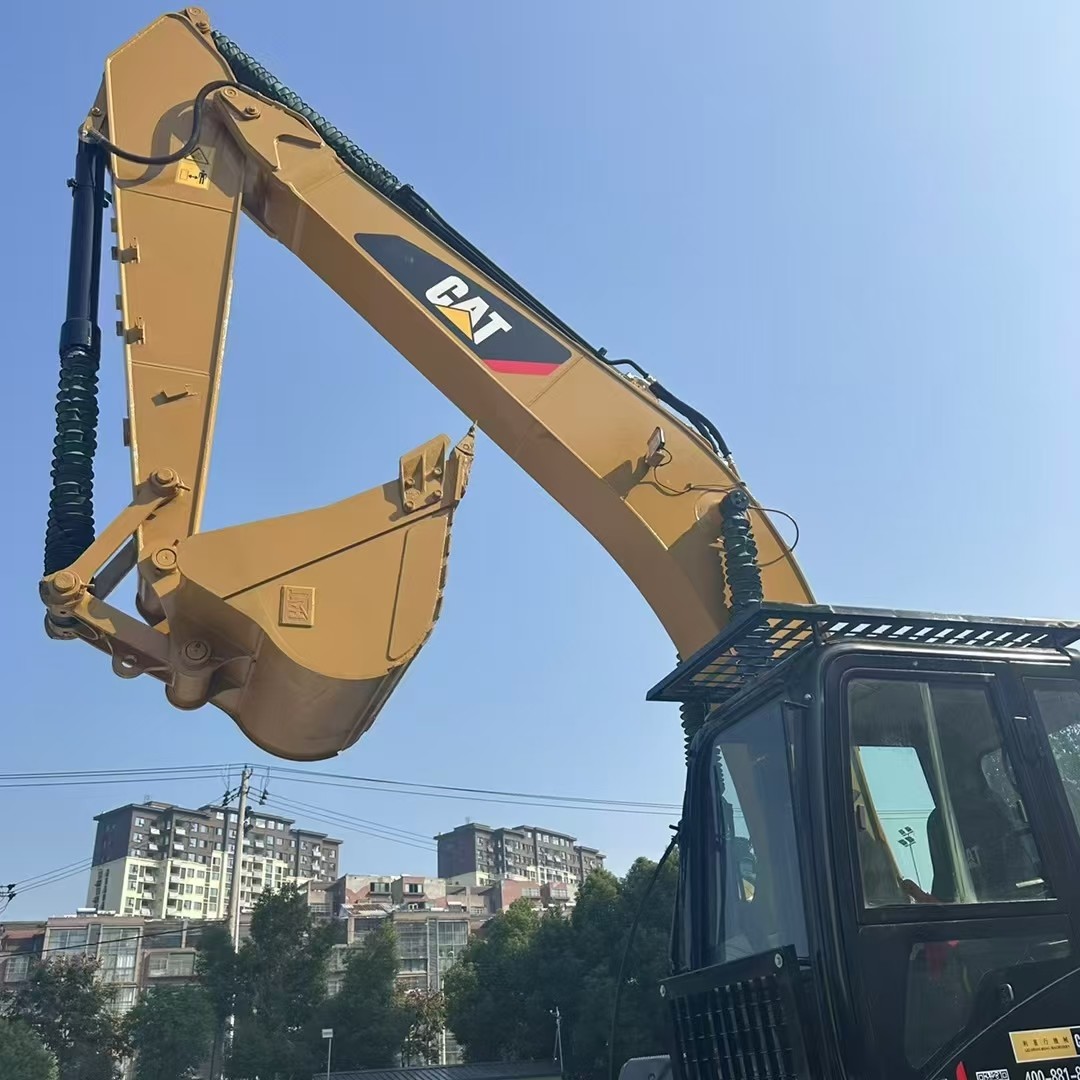

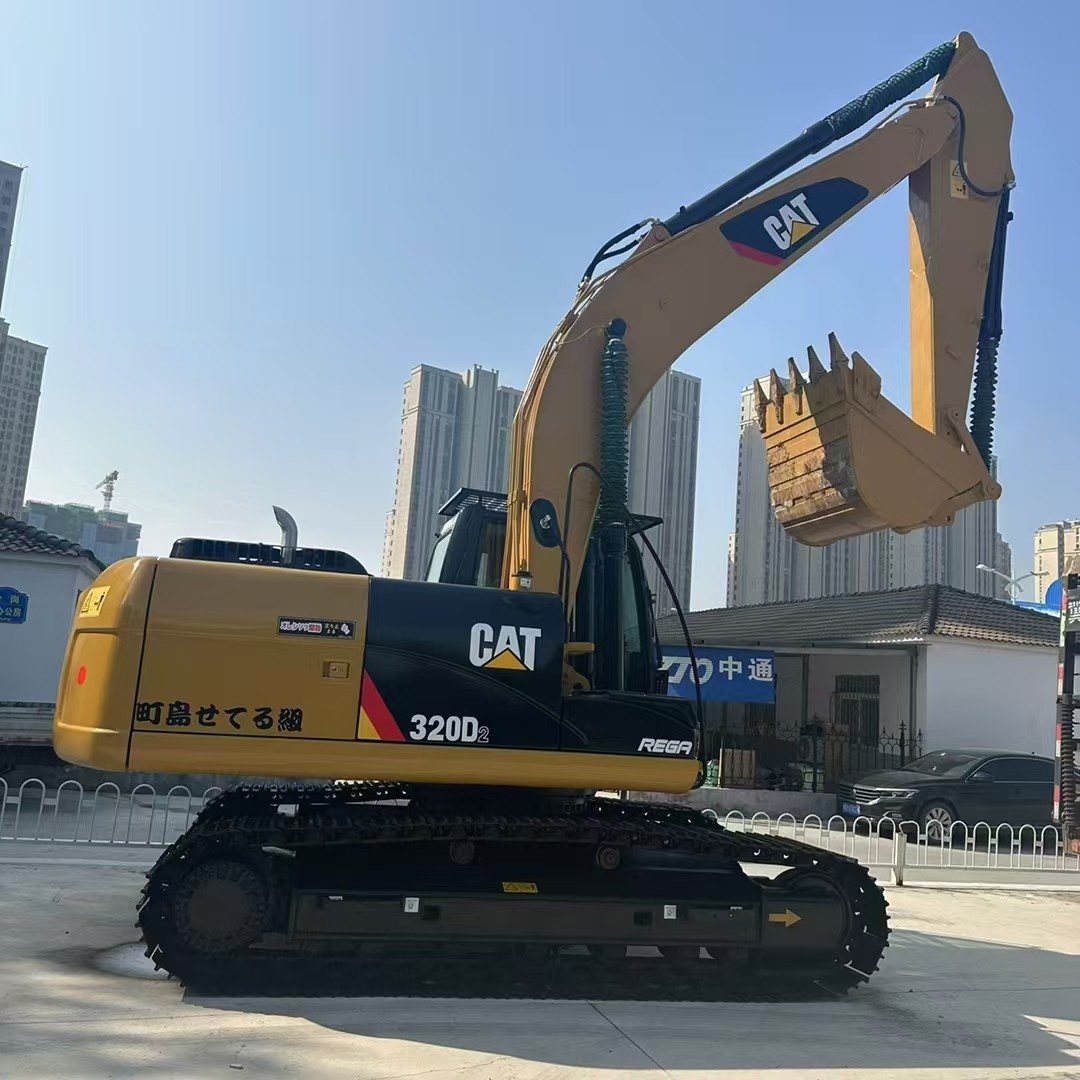

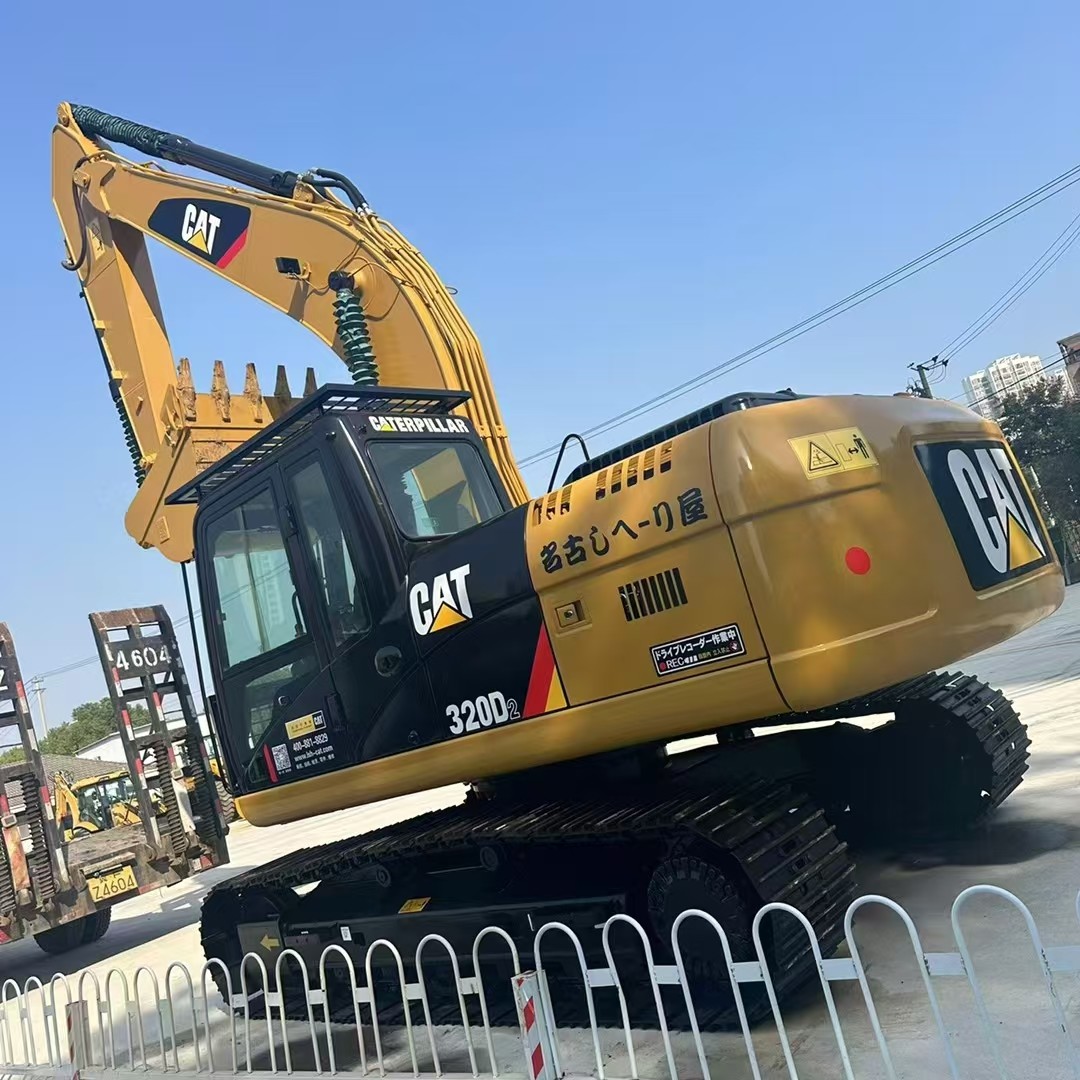

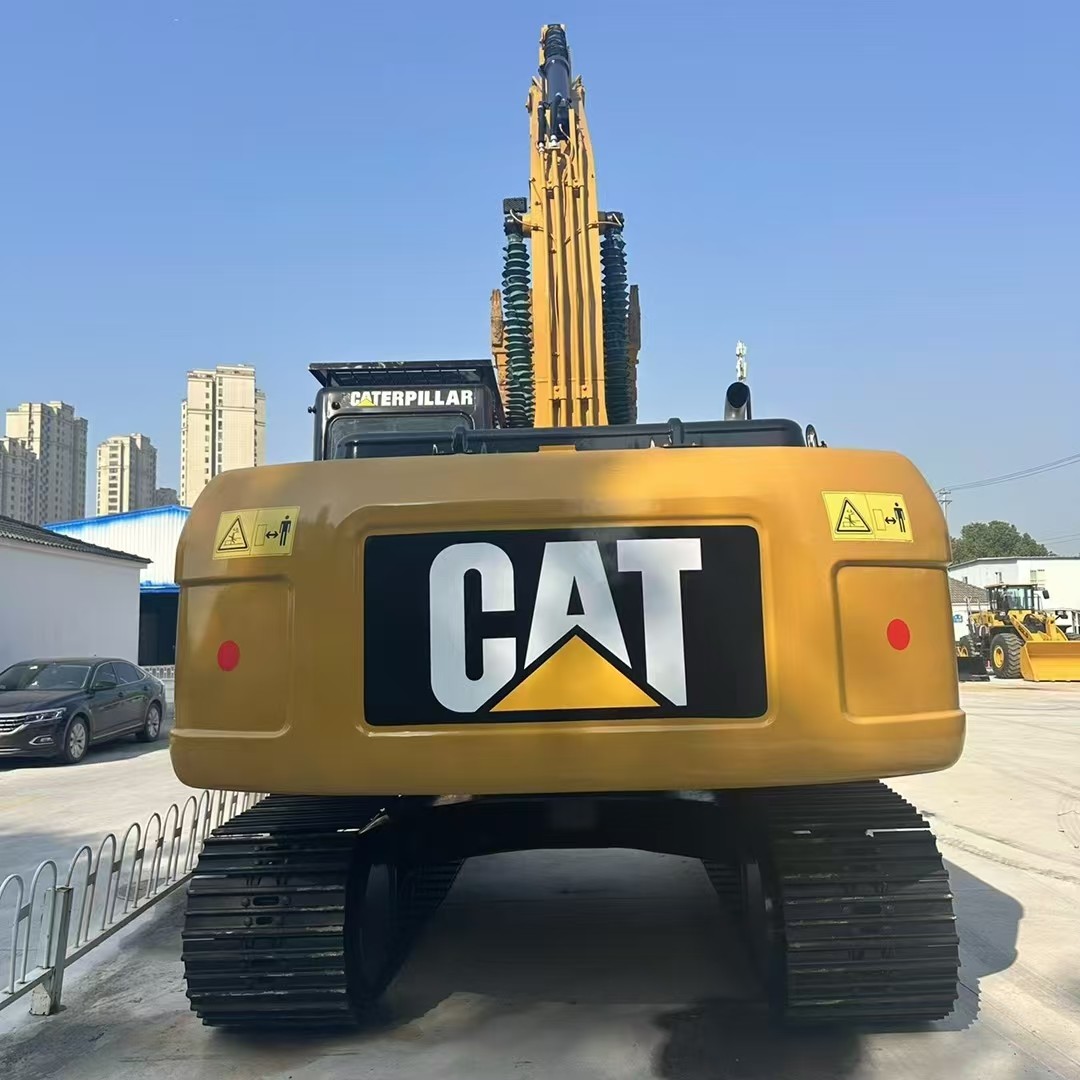

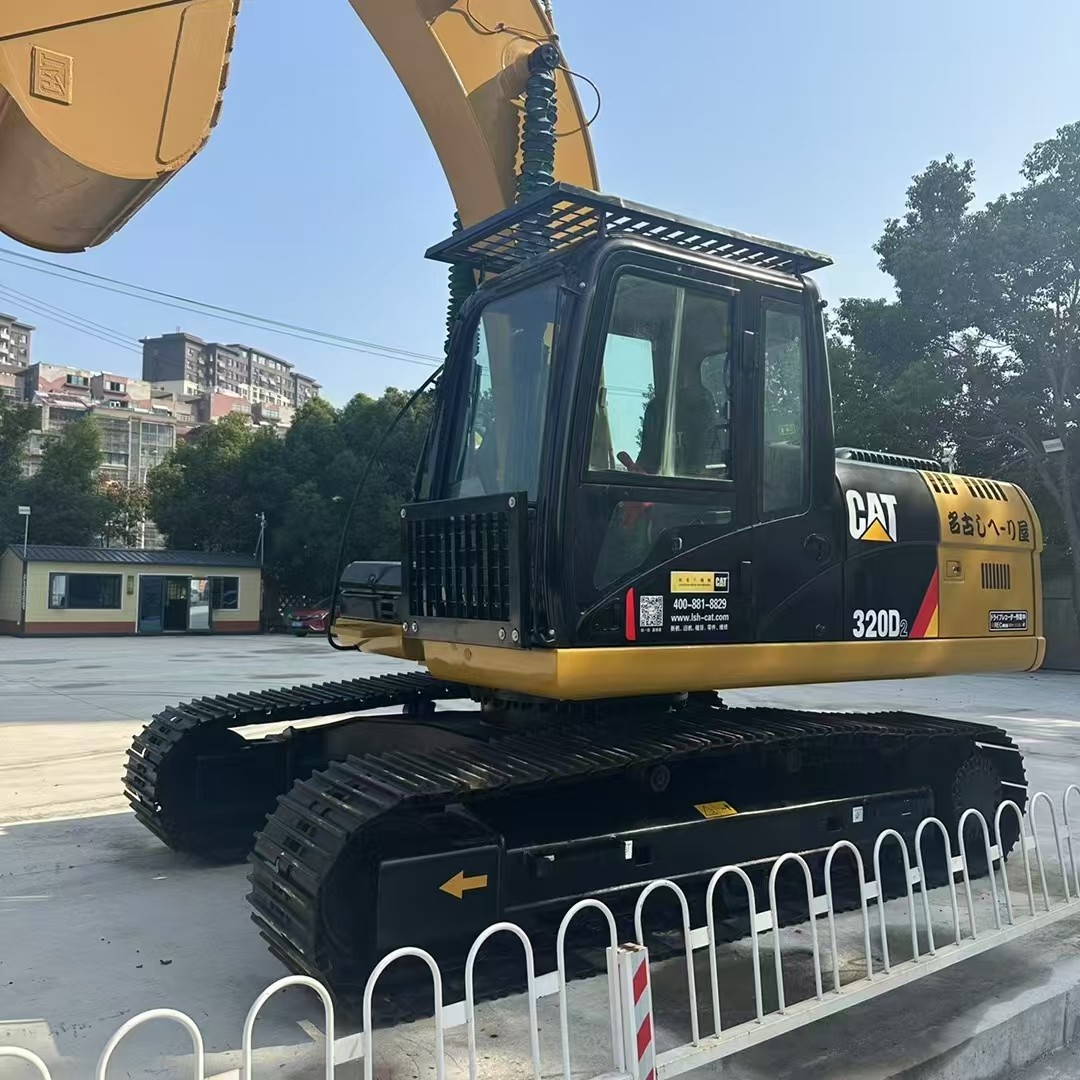

Detailed photos



High quality second-hand Cat 320D2 excavator 0High quality second-hand Cat 320D2 excavator 1High quality second-hand Cat 320D2 excavator 2High quality second-hand Cat 320D2 excavator 3High quality second-hand Cat 320D2 excavator 4High quality second-hand Cat 320D2 excavator 5High quality second-hand Cat 320D2 excavator 6High quality second-hand Cat 320D2 excavator 7High quality second-hand Cat 320D2 excavator 8







Why choose us:



  • Regular maintenance and inspections.
  • Troubleshooting and repair services.
  • Replacement parts and components.
  • Operator training and safety courses.
  • Video support and assistance.

Packing and Shipping


Used excavators are packaged in a safe and protective manner to ensure transportation safety.
Based on the size and weight of the excavator, we use wooden boxes, steel frames, or pallets to package the product.
We use reputable transportation companies, and once the product is shipped, we will provide tracking information.


Our other products and models



Products Brand Model
Used Excavator CAT 306,307,312D,315D,320C,320D,325,330D,336D,349D
Hitachi EX60,EX70,EX75,EX120,EX200,EX240,EX270,EX300,EX350,EX450
ZX60,ZX70,ZX75,ZX120,ZX200,ZX270,ZX300,ZX350,ZX450
Komatsu PC35,PC55,PC60,PC70,PC120,PC130,PC200,PC220,PC300,PC350,PC360,PC400,PC450
Kobelco SK60,SK75,SK120,SK200,SK260,SK350
Doosan DH55,DH60,DH150,DH220,DH225,DH300
DX55,DX60,DX150,DX220,DX225,DX300
Hyundai 130,150,215,225,305
Volvo EC60,EC140,EC210,EC240,EC290,EC300,EC360,EC460,EC480
Kubota U15,U17,U30,U35,KX155,KX165
SANY 55,60,75,95,135,215,235
Used Bulldozer CAT D3(C/G/H),D4(C/H),D5(K/M),D6(G/H),D7G,D8R,D9R
Komatsu D31EX,D65E,D85,D155,D275,D375,D65PX
Shangong SEM816,SEM818
Shantui SD13,SD16,SD22,SD32
Used Loader CAT 938G,966F,966H,966G,950GC,980G
Komatsu WA320,WA380,WA470,WA500,WA600
XCMG 50GN
LIiugong LG856,856H,835,836,862
Shangong SEM650,652
Lingong LG936,956,958,968
Used Backhoe Loader JCB 3CX,4CX,
CASE 508M,580L,580N
Lingong 776,777
Used Motor Grader CAT 12G,4G,120G,140G,140K
Komatsu GD511A,GD655
XCMG GR180,GR215
LIiugong 61,416,141,804,215
Shangong 919,921
Lingong 9180
Used Road roller SANY STR140,STR160,SSR220A,SSR200A
XCMG CA25/30,XS143/163/183,XS203/223/263
Liugong LG614,616,618,620,622,626
Shantui SR16,SR18,SR20,SR22




FAQ:

1.What is your payment method?
Answer: T/T 30% is used as a deposit, and 70% is paid before delivery. Before you pay the balance, we will show you photos of the product and packaging.
2. What are your delivery terms?
Answer: FOB . CIF
3.How about the delivery time?
Answer: Usually, it takes 5 days after receiving the advance payment. The specific delivery time depends on your order and quantity, and sometimes we have some inventory.
4.How to ensure the condition and lifespan of the machine?
Answer: We choose a machine with excellent condition and have professional technicians to inspect all parts of the machine on your behalf.
5.How can we obtain our after-sales service?
Answer: We can provide you with all the necessary parts for the machine and deliver them to you in a short time at a reasonable price.
6. Visits by customers after arriving in China?
A: After you arrive in China, our company will arrange for a driver to pick you up at the airport and provide hotel accommodation. If you successfully cooperate with us, we can reimburse your flight ticket to China (economy class only)
