Product Description
Used Crawler Type CAT 320B Excavator second hand construction equipment
Product introduction
The CAT320B excavator is a heavy-duty construction machinery produced by Caterpillar Inc. The following is a detailed introduction to it:
1, Basic Information
Brand: Caterpillar
Model: 320B
Manufacturer: Joint Venture/Import
2, Main specifications and performance
Tonnage: 20 tons
The working weight of the whole machine is between 19400kg and 22530kg.
Bucket capacity: Under standard configuration, the bucket capacity is 1m ³.
The length of the boom is about 5680mm, which may vary depending on the model.
Stick length: Standard configuration is 2900mm
Walking speed: It has two speed modes, with a low speed of 3.4km/h and a high speed of 5.5km/h
Engine model: Caterpillar CAT 3066T
Rated power: 99.9kw/1800rpm
Displacement: 6.4L
3, Hydraulic system
Maximum flow rate of main pump: 185l/min
Working hydraulic circuit: 34.3Mpa.
Walking hydraulic circuit: 34.3Mpa.
Rotary hydraulic circuit: 23Mpa.
Pilot oil circuit: 4.12MPa.
4, Oil capacity
Fuel tank: 340L
Hydraulic oil tank: 130L
Engine oil change amount: about 20.5L.
Coolant: around 25L.
5, Main body dimensions and scope of work
Total transportation length: about 9440mm
Total transportation width: about 2800mm
Total transportation height: between 2940mm and 3245mm, depending on the model and configuration.
Maximum excavation radius of the parking surface: around 9780mm
Maximum excavation depth: around 6640mm
Maximum excavation height: 9470mm.
Maximum unloading height: around 6570mm
6, Other characteristics
Bucket form: Backhoe.
Power form: Traditional power.
High homework efficiency: With powerful excavation force and fast rotation speed, it is suitable for various complex excavation operations.
Strong durability: Using high-quality materials and advanced manufacturing processes, the machine ensures stable performance and a long service life even in harsh working environments.
In summary, the CAT320B excavator is a heavy-duty construction machinery with excellent performance and strong durability, widely used in various fields such as civil engineering, mining, and construction sites.
Product parameters table
| product name |
used excavator |
|
| country of origin |
Japan |
|
| Product model |
CAT 320B |
|
| engine |
Cat ® C6.6ACERT |
|
| Length * width * height(mm) |
11000×3000×3000
|
|
| Bucket capacity |
1.2(m³) |
|
| Rated power (kW) |
36.5kW |
|
| Rated speed (r/min) |
2300 |
|
| Overall weight |
21000 (kg) |
|
| Moving type |
Crawler excavator |
|
| Number of cylinders |
6 |
|
| Cooling method |
Water cooling, direct injection |
|
| advantage |
Pre sales and after-sales service, providing free operation manuals |
|
| Driving method |
Hydraulic drive |
|

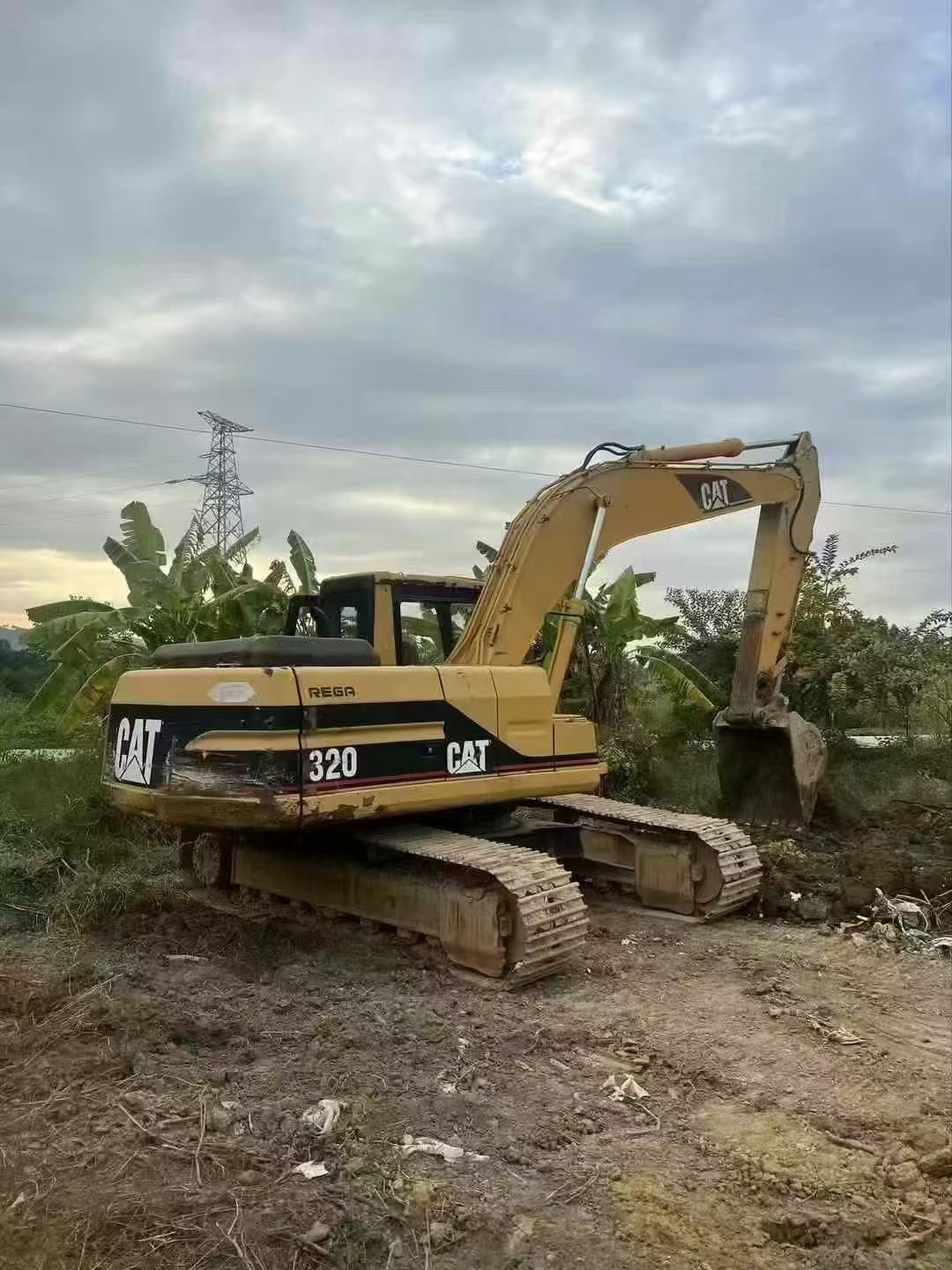

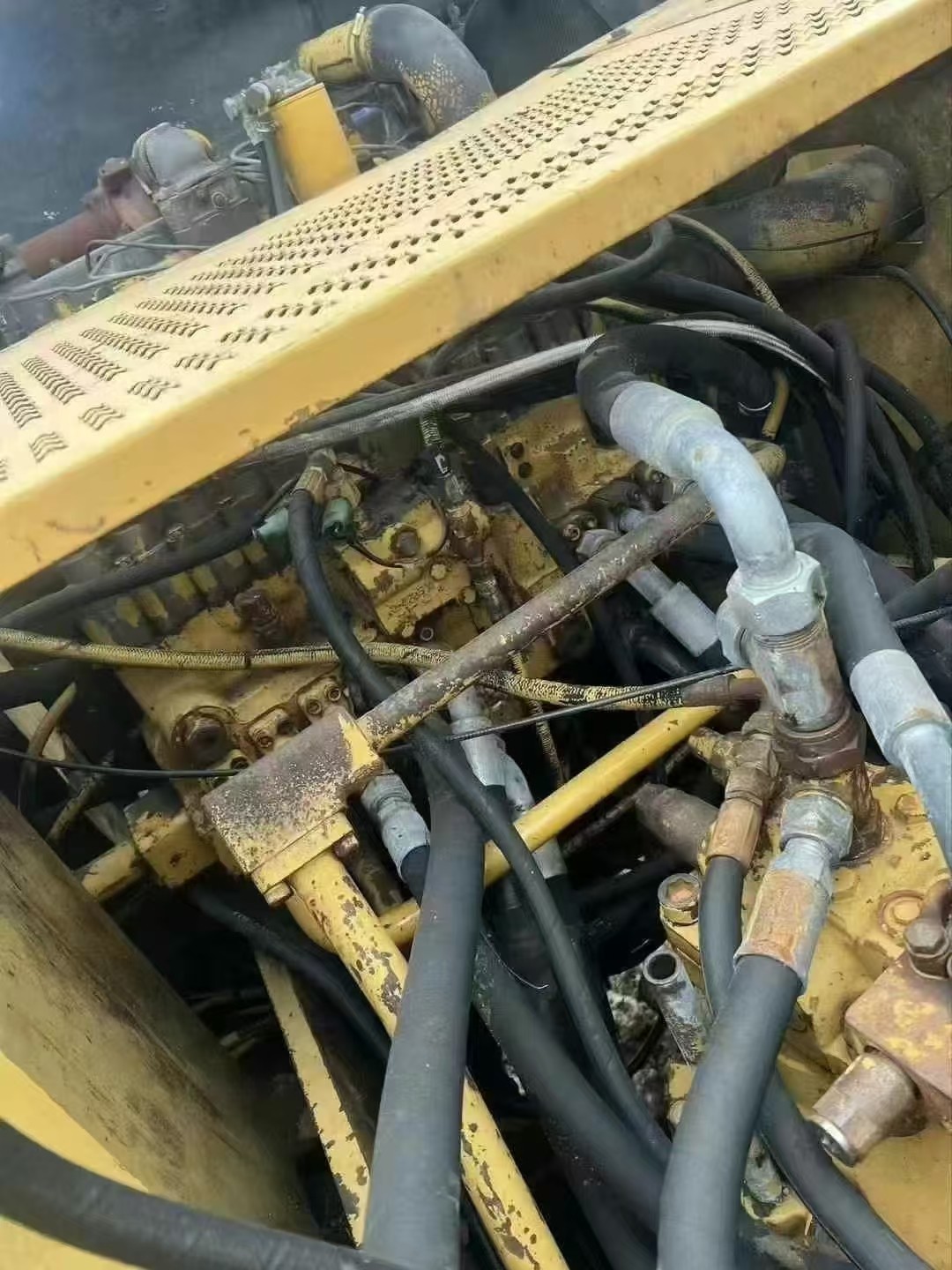

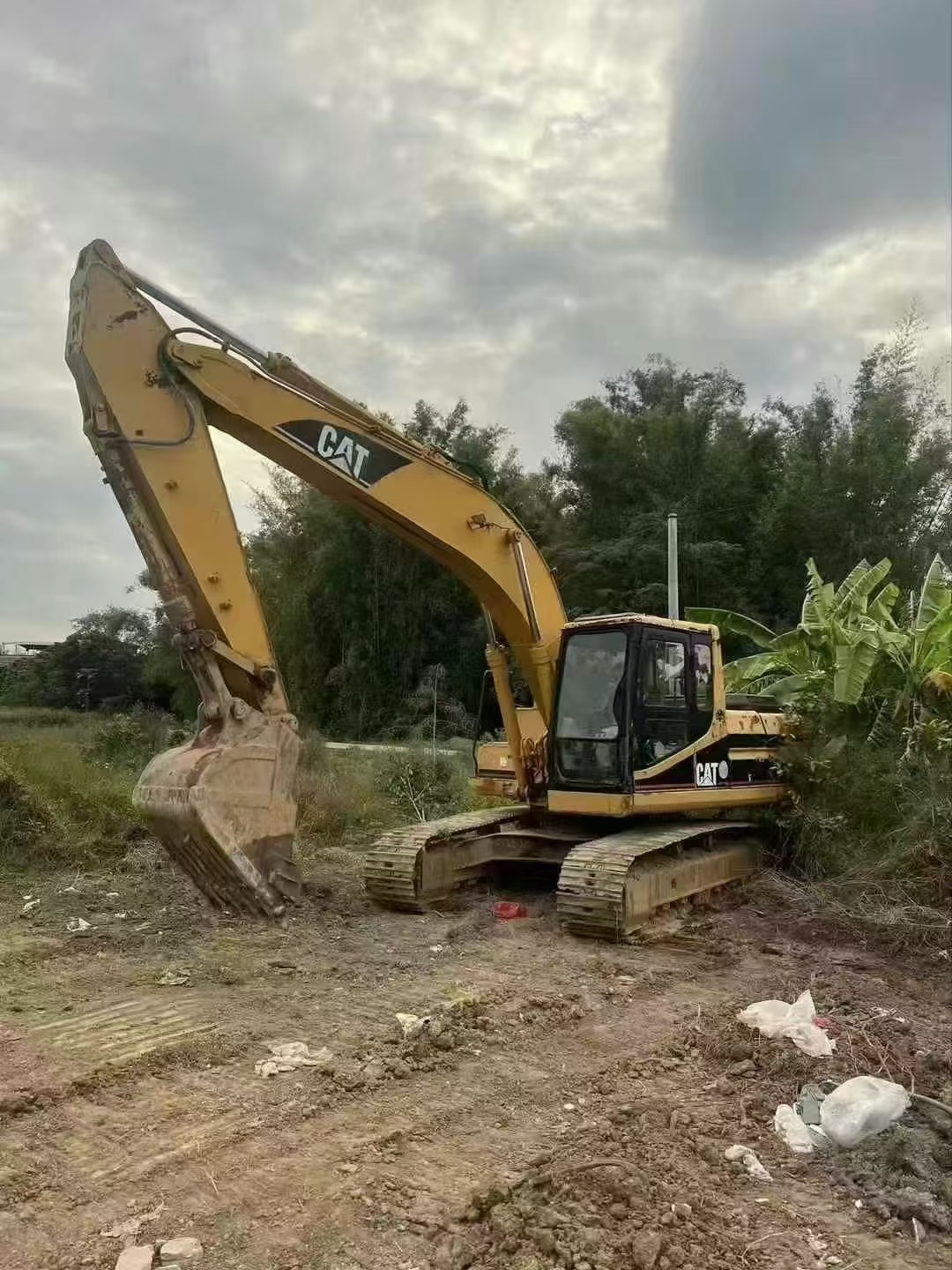

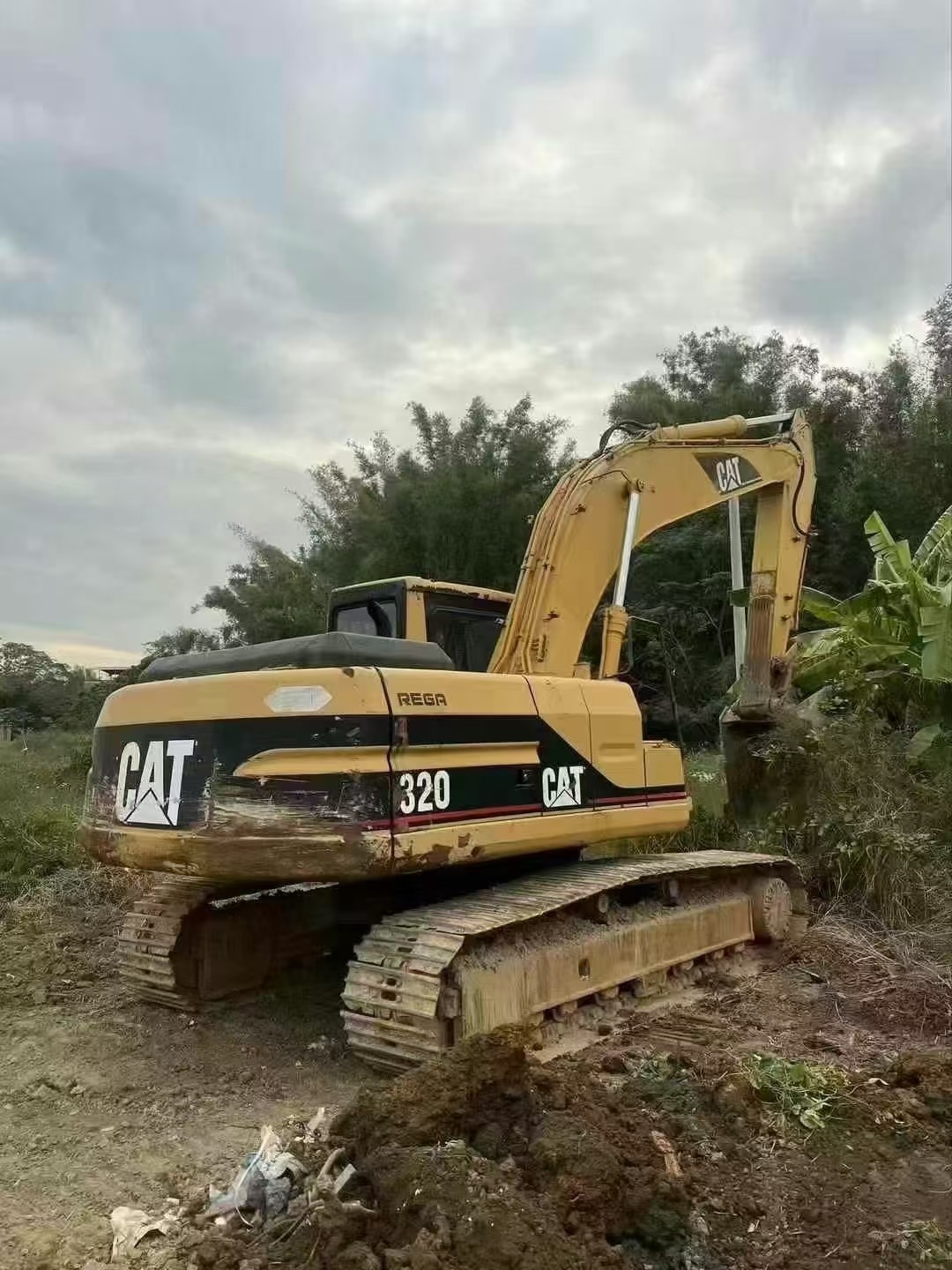

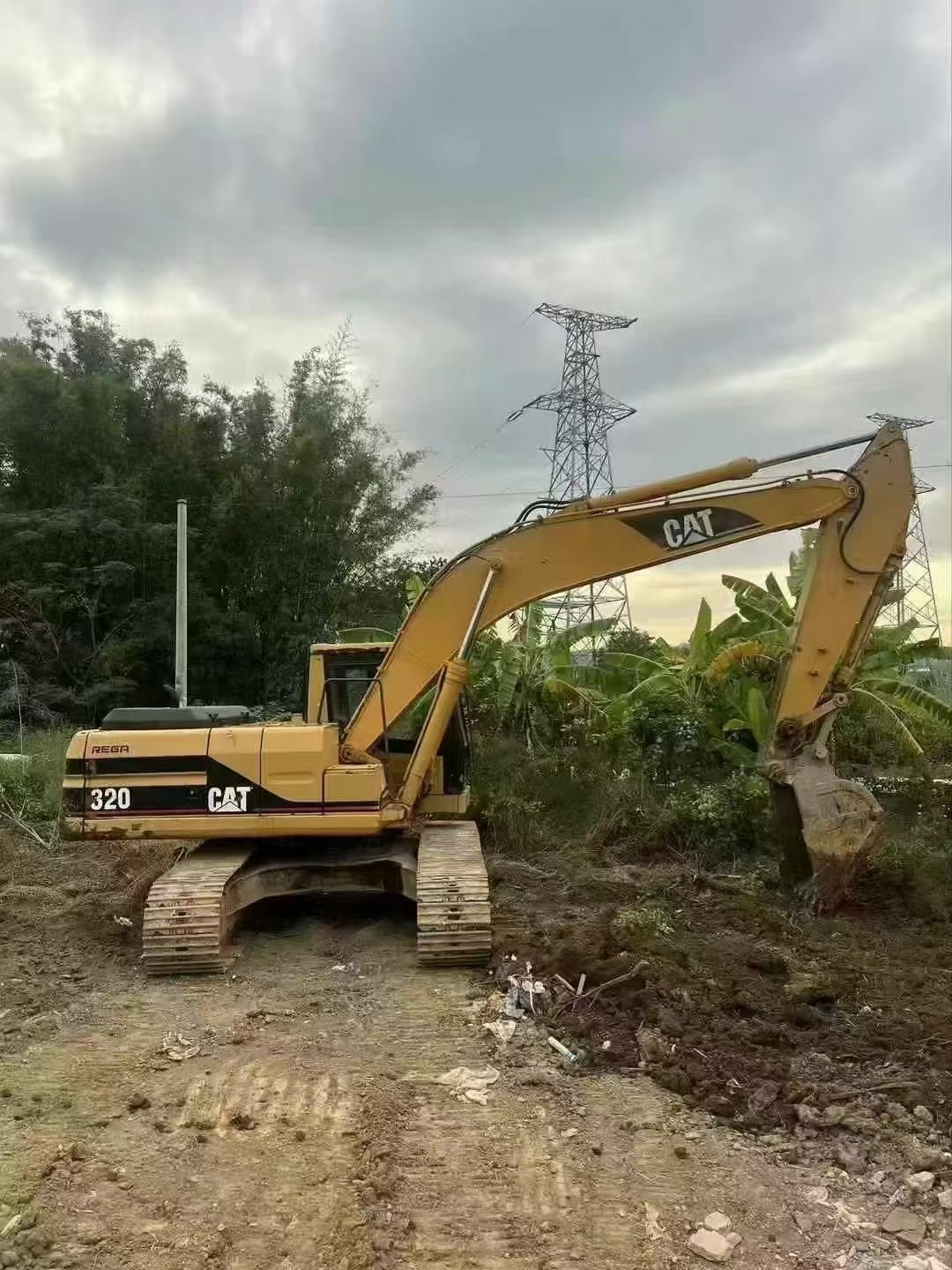

Product Display
♥ quality assurance
————
We have professional engineers to inspect all parts and ensure that customers ensure that the machine is in good condition
Why did you choose us?
Firstly, we are very professional in engineering machinery. We can obtain authorization certificates for the brands we sell. Secondly, all machines can be inspected on your behalf. We provide pre-sales and after-sales services to inspect the performance of the machines on your behalf before sales. Finally, we have professional technical personnel from the factory and our own trading company, providing OEM and ODM services
Our main products:
| Products |
Brand |
Model |
| Used Excavator |
CAT |
306,307,312D,315D,320C,320D,325,330D,336D,349D |
| Hitachi |
EX60,EX70,EX75,EX120,EX200,EX240,EX270,EX300,EX350,EX450 |
| ZX60,ZX70,ZX75,ZX120,ZX200,ZX270,ZX300,ZX350,ZX450 |
| Komatsu |
PC35,PC55,PC60,PC70,PC120,PC130,PC200,PC220,PC300,PC350,PC360,PC400,PC450 |
| Kobelco |
SK60,SK75,SK120,SK200,SK260,SK350 |
| Doosan |
DH55,DH60,DH150,DH220,DH225,DH300 |
| DX55,DX60,DX150,DX220,DX225,DX300 |
| Hyundai |
130,150,215,225,305 |
| Volvo |
EC60,EC140,EC210,EC240,EC290,EC300,EC360,EC460,EC480 |
| Kubota |
U15,U17,U30,U35,KX155,KX165 |
| SANY |
55,60,75,95,135,215,235 |
| Used Bulldozer |
CAT |
D3(C/G/H),D4(C/H),D5(K/M),D6(G/H),D7G,D8R,D9R |
| Komatsu |
D31EX,D65E,D85,D155,D275,D375,D65PX |
| Shangong |
SEM816,SEM818 |
| Shantui |
SD13,SD16,SD22,SD32 |
| Used Loader |
CAT |
938G,966F,966H,966G,950GC,980G |
| Komatsu |
WA320,WA380,WA470,WA500,WA600 |
| XCMG |
50GN |
| LIiugong |
LG856,856H,835,836,862 |
| Shangong |
SEM650,652 |
| Lingong |
LG936,956,958,968 |
| Used Backhoe Loader |
JCB |
3CX,4CX, |
| CASE |
508M,580L,580N |
| Lingong |
776,777 |
| Used Motor Grader |
CAT |
12G,4G,120G,140G,140K |
| Komatsu |
GD511A,GD655 |
| XCMG |
GR180,GR215 |
| LIiugong |
61,416,141,804,215 |
| Shangong |
919,921 |
| Lingong |
9180 |
| Used Road roller |
SANY |
STR140,STR160,SSR220A,SSR200A |
| XCMG |
CA25/30,XS143/163/183,XS203/223/263 |
| Liugong |
LG614,616,618,620,622,626 |
| Shantui |
SR16,SR18,SR20,SR22 |
FAQ:
1.What is your payment method?
Answer: T/T 30% is used as a deposit, and 70% is paid before delivery. Before you pay the balance, we will show you photos of the product and packaging.
2. What are your delivery terms?
Answer: FOB / CIF
3.How about the delivery time?
Answer: Usually, it takes 7 days after receiving the advance payment. The specific delivery time depends on your order and quantity, and sometimes we have some inventory.
4.How to ensure the condition and lifespan of the machine?
Answer: We choose a machine with excellent condition and have professional technicians to inspect all parts of the machine on your behalf.
5.How can we obtain our after-sales service?
Answer: We can provide you with all the necessary parts for the machine and deliver them to you in a short time at a reasonable price.
6. How do customers conduct visits and inspections in China?
Answer: We are ready for your trip to China. If you purchase a machine from our company, you can fully reimburse the airfare cost (economy class only). If you are not familiar with Shanghai, you can contact us in advance and welcome you to China.
