Product Description
High quality second-hand Komatsu WA380-3 loader from Japan sold at a low price
The Komatsu WA380-3 loader is a high-performance engineering machinery equipment. The following is a detailed introduction to it:
1, Basic parameters
Equipment model: WA380-3
Model abbreviation: 380
Operating weight of the whole machine: 16360kg
Rated load capacity: 5000kg
Bucket capacity: 3.0m ³
2, Engine performance
Engine model: Komatsu SA6D114 (or S6D114)
Type: 4-stroke 6-cylinder inline turbocharged direct injection
Rated power/speed: 146kW/2200r/min
Maximum torque/speed: No specific value provided
Total displacement: 8.27L
Fuel consumption rate: No specific value provided
3, Transmission system
Transmission model: Parallel shaft power shift
Driving speed:
1st gear (forward/reverse): 7.7/8.0km/h
2nd gear (forward/reverse): 12.3/12.8km/h
3rd gear (forward/reverse): 21.4/22.6km/h
4th gear (forward/reverse): 34.0/35.0km/h
4, Hydraulic system
Hydraulic pump type: Specific type not provided
Flow rate (at rated speed): No specific value provided
Rated working pressure: No specific value provided
5, Overall dimensions and performance
Overall length: 7965mm
Machine width: 2780mm
Overall height: 3345mm (or 3380mm, slightly different from different sources)
Minimum ground clearance: 445mm (or 455mm, slightly different from different sources)
Unloading height (unloading angle of 45 °): 2900mm
Unloading distance (unloading angle of 45 °): 1170mm
Steering angle: ± 40 °
Minimum turning radius (based on the center of the outer wheel): 5475mm
Maximum excavation force (excavation force): 168kN
Maximum traction force: 147kN
6, Oil capacity
Fuel tank capacity: 285L
Engine oil: 19L
7, User reviews and market positioning
The Komatsu WA380-3 loader has received widespread praise from users in the market for its excellent performance and stability. Although some users have reported its high price, most users are satisfied with its performance and quality. This model is suitable for various large-scale engineering operations and can meet users' needs for efficient, stable, and reliable work.
In summary, the Komatsu WA380-3 loader is an excellent, stable, and reliable engineering machinery equipment, suitable for various large-scale engineering operation scenarios. Although the price is high, its excellent performance and quality bring users higher work efficiency and lower maintenance costs.
Product parameters table
| Product name |
Komatsu loaders |
| Equipment model |
WA380-3 |
|
| Rated power (kW/rpm) |
206/2200 |
|
| Bucket capacity(m³) |
3 |
|
| Engine model |
Komatsu SAA6D125E-5 |
|
| Overall weight (kg) |
16000 |
|
| Rated load capacity (kg) |
5000 |
|
| Walking mode |
Tire type |
|
| Overall length (mm) |
8000 |
|
| Overall height (mm) |
3500 |
|
| Overall width (mm) |
2800 |
|

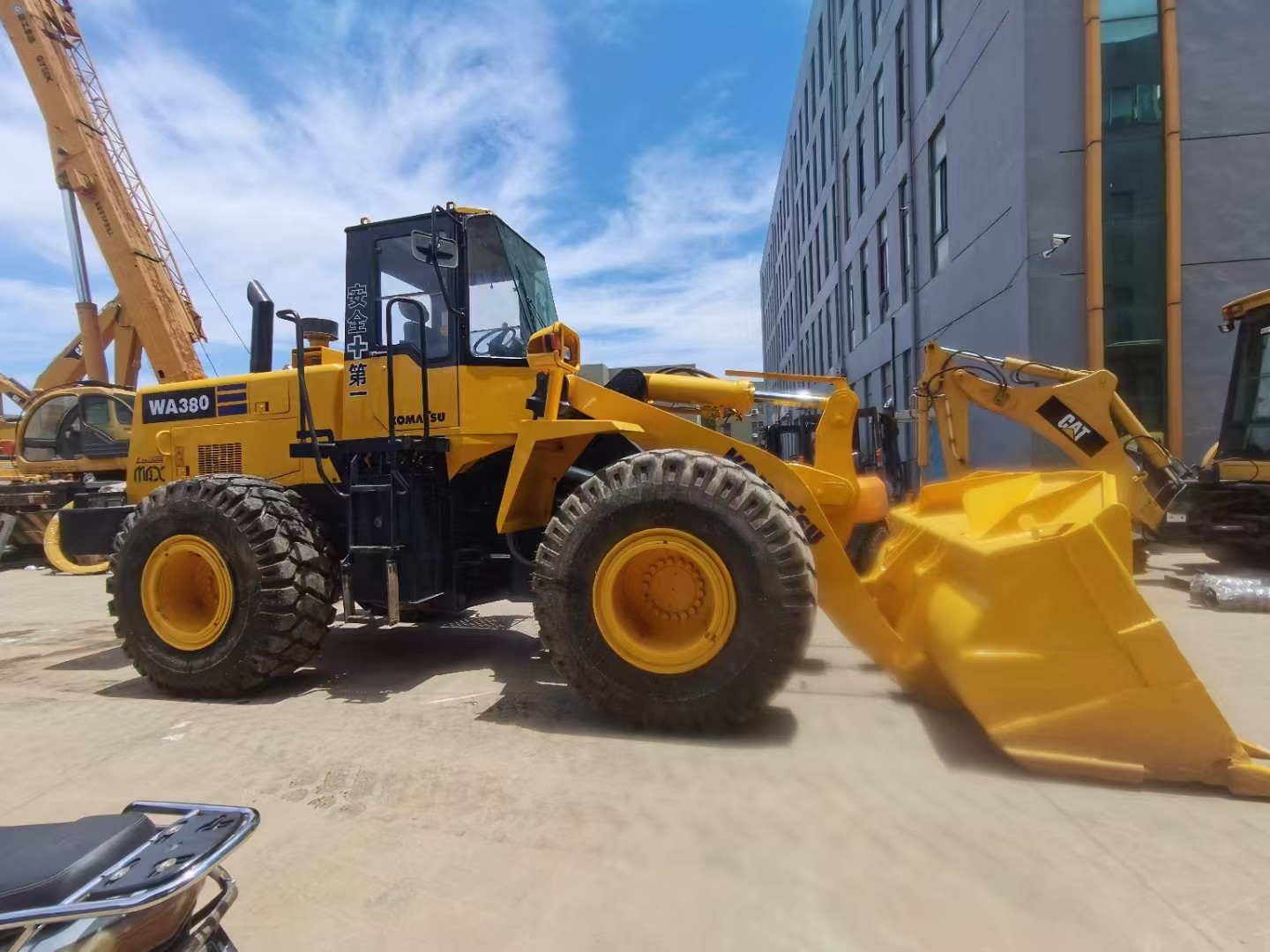

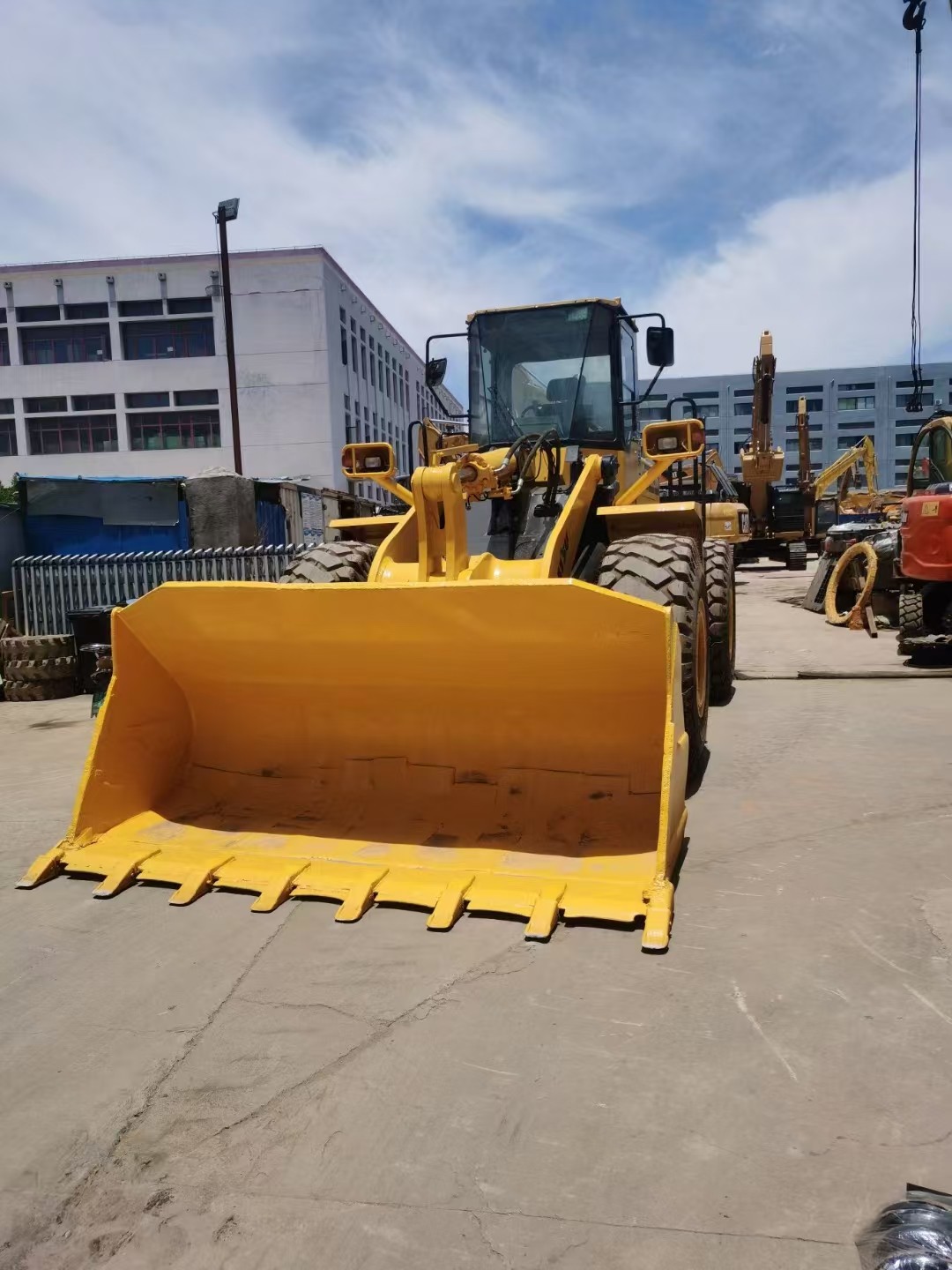

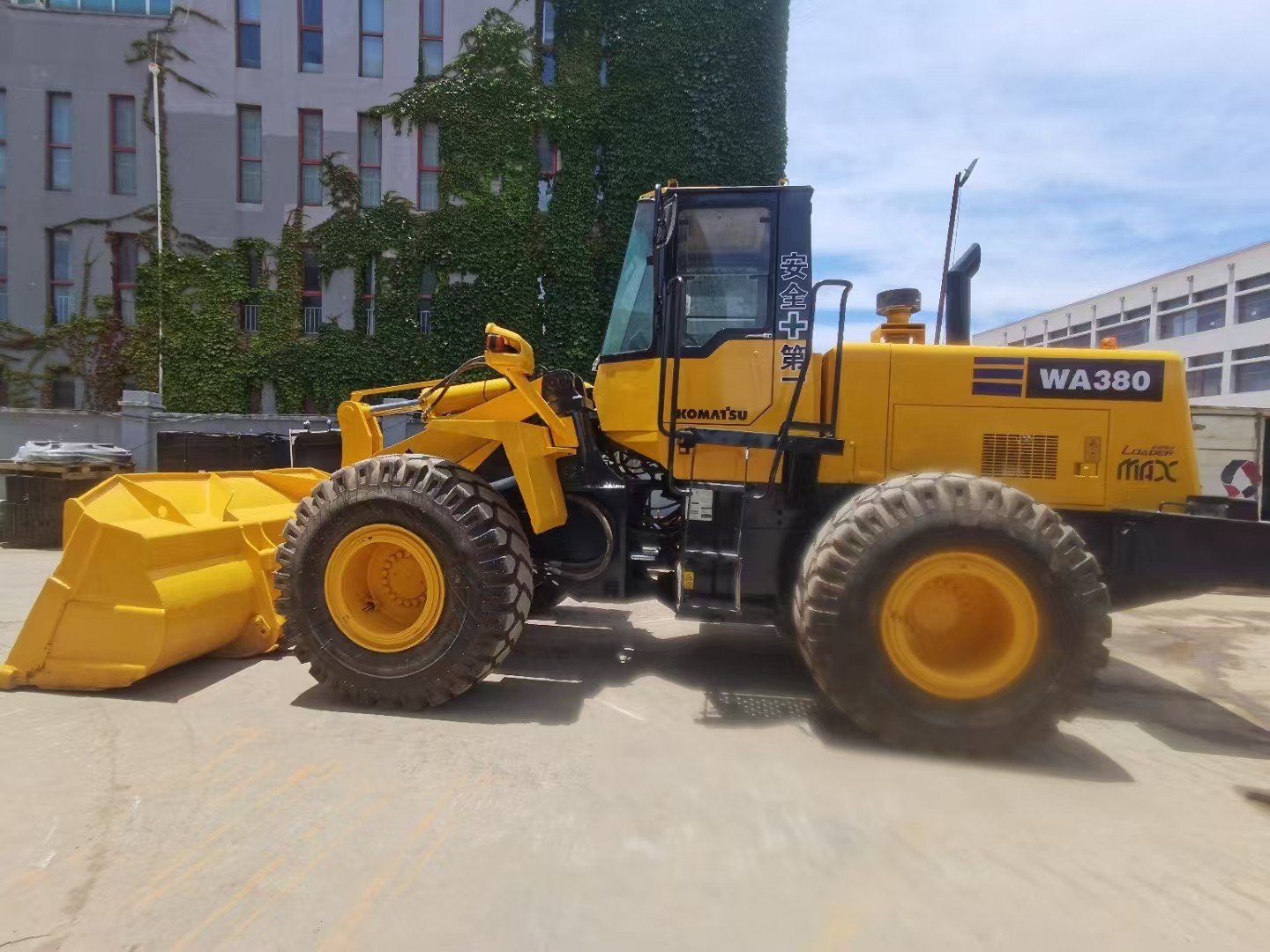

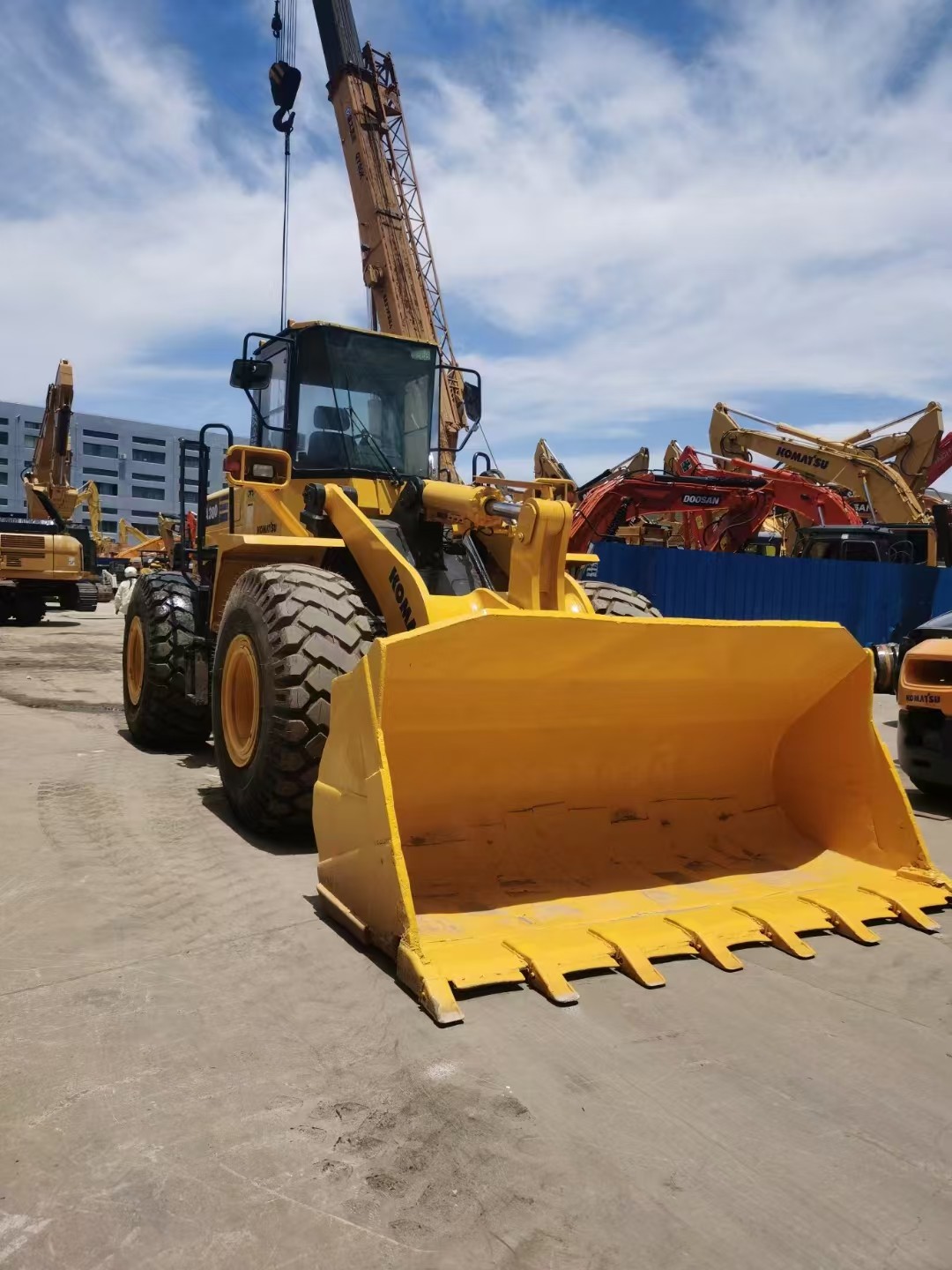

Product Photos
Support and Services
Machine Operation Guide Technical Support and Services
Instructions for safe and efficient use
Free inspection and regular maintenance before leaving the factory
Provide spare parts after becoming our customer
Packing and Shipping:
Used machines are transported using appropriate packaging materials to ensure the safety and integrity of the product during transportation. Packaging materials include corrugated boxes, shrink packaging, bubble packaging and foam. Depending on the size and weight of the product, the excavator is also secured to wooden pallets or slides using belts, shrink wrap, and/or stretch wrap.
Why did you choose us?
♥ quality assurance
————
Firstly, we are very professional in engineering machinery. We have professional engineers to inspect all parts and ensure that customers ensure that the machine is in good condition.
Secondly,We can obtain authorization certificates for the brands we sell, all machines can be inspected on your behalf. We provide pre-sales and after-sales services to inspect the performance of the machines on your behalf before sales.
Finally, we have professional technical personnel from the factory and our own trading company, providing OEM and ODM services
Our main products:
| Products |
Brand |
Model |
| Used Excavator |
CAT |
306,307,312D,315D,320C,320D,325,330D,336D,349D |
| Hitachi |
EX60,EX70,EX75,EX120,EX200,EX240,EX270,EX300,EX350,EX450 |
| ZX60,ZX70,ZX75,ZX120,ZX200,ZX270,ZX300,ZX350,ZX450 |
| Komatsu |
PC35,PC55,PC60,PC70,PC120,PC130,PC200,PC220,PC300,PC350,PC360,PC400,PC450 |
| Kobelco |
SK60,SK75,SK120,SK200,SK260,SK350 |
| Doosan |
DH55,DH60,DH150,DH220,DH225,DH300 |
| DX55,DX60,DX150,DX220,DX225,DX300 |
| Hyundai |
130,150,215,225,305 |
| Volvo |
EC60,EC140,EC210,EC240,EC290,EC300,EC360,EC460,EC480 |
| Kubota |
U15,U17,U30,U35,KX155,KX165 |
| SANY |
55,60,75,95,135,215,235 |
| Used Bulldozer |
CAT |
D3(C/G/H),D4(C/H),D5(K/M),D6(G/H),D7G,D8R,D9R |
| Komatsu |
D31EX,D65E,D85,D155,D275,D375,D65PX |
| Shangong |
SEM816,SEM818 |
| Shantui |
SD13,SD16,SD22,SD32 |
| Used Loader |
CAT |
938G,966F,966H,966G,950GC,980G |
| Komatsu |
WA320,WA380,WA470,WA500,WA600 |
| XCMG |
50GN |
| LIiugong |
LG856,856H,835,836,862 |
| Shangong |
SEM650,652 |
| Lingong |
LG936,956,958,968 |
| Used Backhoe Loader |
JCB |
3CX,4CX, |
| CASE |
508M,580L,580N |
| Lingong |
776,777 |
| Used Motor Grader |
CAT |
12G,4G,120G,140G,140K |
| Komatsu |
GD511A,GD655 |
| XCMG |
GR180,GR215 |
| LIiugong |
61,416,141,804,215 |
| Shangong |
919,921 |
| Lingong |
9180 |
| Used Road roller |
SANY |
STR140,STR160,SSR220A,SSR200A |
| XCMG |
CA25/30,XS143/163/183,XS203/223/263 |
| Liugong |
LG614,616,618,620,622,626 |
| Shantui |
SR16,SR18,SR20,SR22
|
FAQ:
1.What is your payment method?
Answer: T/T 30% is used as a deposit, and 70% is paid before delivery. Before you pay the balance, we will show you photos of the product and packaging.
2. What are your delivery terms?
Answer: FOB , CIF
3.How about the delivery time?
Answer: Usually, it takes 7 days after receiving the advance payment. The specific delivery time depends on your order and quantity, and sometimes we have some inventory.
4.How to ensure the condition and lifespan of the machine?
Answer: We choose a machine with excellent condition and have professional technicians to inspect all parts of the machine on your behalf.
5.How can we obtain our after-sales service?
Answer: We can provide you with all the necessary parts for the machine and deliver them to you in a short time at a reasonable price.
6. How do customers conduct visits and inspections in China?
Answer: We are ready for your trip to China. If you purchase a machine from our company, you can fully reimburse the airfare cost (economy class only). If you are not familiar with Shanghai, you can contact us in advance and welcome you to China.
♥ Contact Us
————
Regarding engineering machinery, if you have any questions, please contact us.
Phone number/WeChat account: 86 13361952589
Email: 13361952589@163.com
