Road Construction Hydraulic Excavator , Excellent Performance CAT 320GC Excavator

Product Description

                    Road construction hydraulic excavator, excellent performance CAT 320GC excavator

Product introduction

The CAT 320GC excavator is a medium-sized hydraulic excavator produced by Caterpillar Inc. It is widely used in various fields such as mining, construction, and road construction due to its excellent performance and adaptability. The following is a detailed introduction to the CAT 320GC excavator:

1, Basic Overview
Equipment model: CAT 320GC
Equipment type: Medium hydraulic excavator
Manufacturer: Caterpillar Inc
2, Main features
Efficient and energy-saving:
By adopting advanced engines and hydraulic systems, a perfect combination of high performance and low fuel consumption has been achieved.
The intelligent mode can automatically adjust the engine and hydraulic power according to the mining conditions, further reducing energy consumption.
Reliable and durable:
The sturdy and durable structural design and high-quality components ensure that the excavator can maintain stable performance even under harsh working conditions.
Easy maintenance reduces downtime and repair costs.
Comfortable operation:
A spacious and comfortable driver's cabin, equipped with advanced seats and control systems, providing operators with a pleasant driving experience.
Standard touch screen monitor and operator ID function, convenient for operators to monitor machine status and make personalized settings at any time.
3, Technical parameters
engine:
Model: Cat C4.4 ACERT ™
Rated power: 108 kW (also known as 110 kW, depending on configuration and testing standards)
Displacement: 4.4 L (there are also data showing 4.41 L, with slight differences)
Emission standard: National III
Performance parameters:
Working weight: 20500 kg (there are also data indicating a minimum working weight of 19800 kg and a maximum working weight of 20500 kg)
Bucket capacity: 1.0 m ³
Walking speed (high/low): 5.9 km/h (usually only one speed is given, but can be adjusted as needed)
Rotation speed: approximately 11.3 rpm (specific values may vary depending on configuration and operating conditions)
Maximum excavation depth: 9450 mm (there are also data for other values, but the difference is not significant)
Maximum excavation height: 6720 mm (with slight differences)
Maximum vertical excavation depth: 5690mm
Overall dimensions:
Track gauge: 2200 mm (some sources suggest 2380 mm, which may be due to different configurations or measurement methods)
Minimum ground clearance: approximately 468-470 mm (specific values may vary depending on configuration and operating conditions)
Rear turning radius: approximately 2830-2833 mm (with slight differences)
Oil capacity:
Fuel tank: 345 L (also available as 364 L, subject to actual model)
Hydraulic oil tank: 128 L (there is also information that it is 115 L, please refer to the actual model for details)
Engine oil change quantity: 15 L
Coolant: Approximately 25-32 L (specific values may vary depending on configuration and operating conditions)
4, Application Fields
The CAT 320GC excavator is suitable for various construction scenarios, including but not limited to:
Mining: Used for the excavation and loading of ores.
Construction: Used for foundation excavation, earthwork backfilling and other operations.
Road construction: used for road widening, ditch excavation and other operations.
Water conservancy engineering: used for operations such as river dredging and reservoir construction.
5, User reviews
Users generally have high evaluations of the CAT 320GC excavator and believe that it has the following advantages:
High digging power and high work efficiency.
Easy to operate and comfortable to drive.
Easy maintenance and upkeep, reducing usage costs.
The machine has stable and reliable performance with a low failure rate.

In summary, the CAT 320GC excavator has demonstrated strong competitiveness in multiple fields due to its excellent performance and adaptability. Whether it is mining or construction, we can provide users with efficient and reliable solutions.

Product Technical Parameters Table

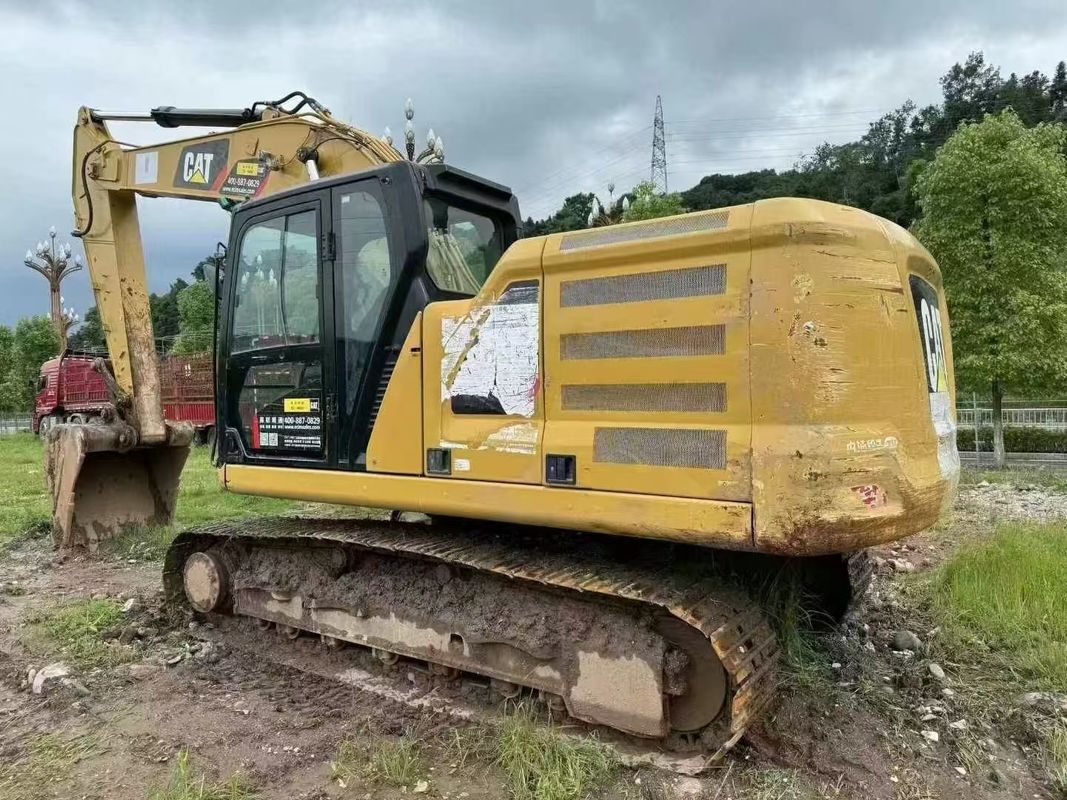

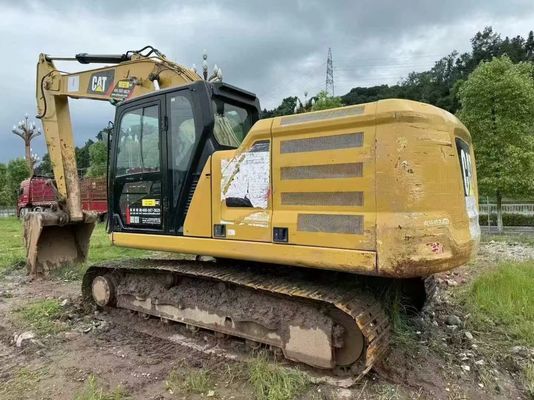

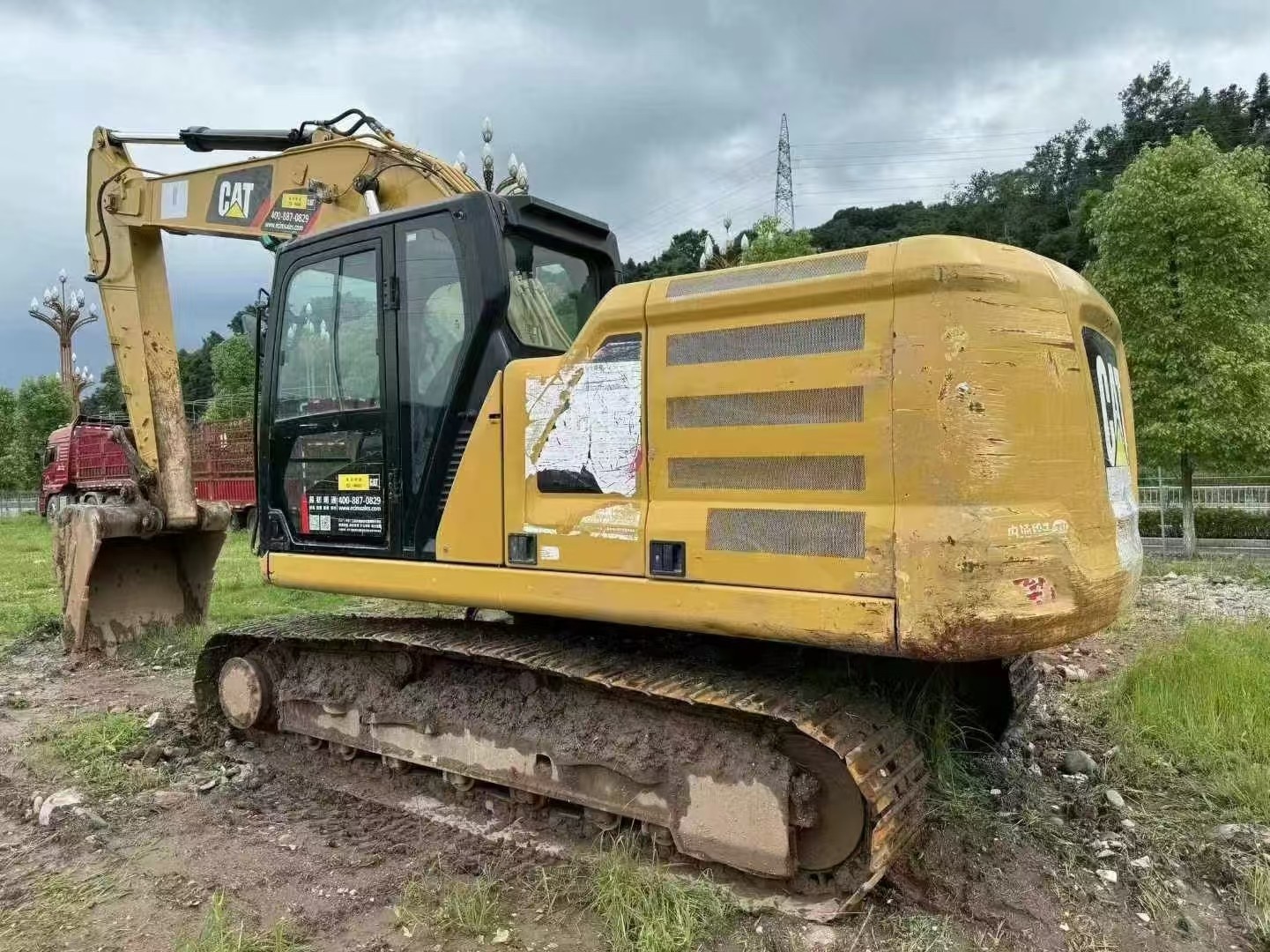

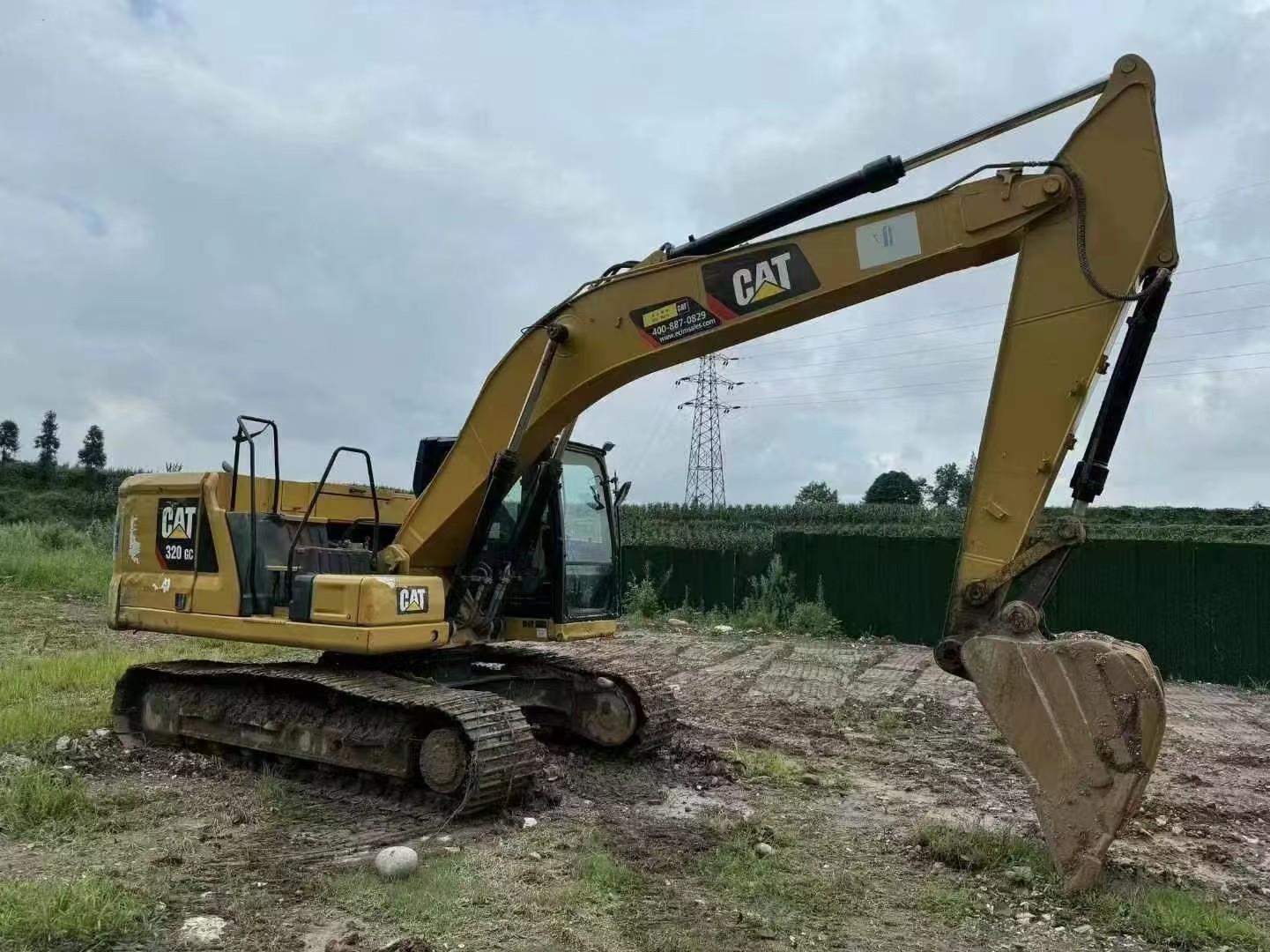

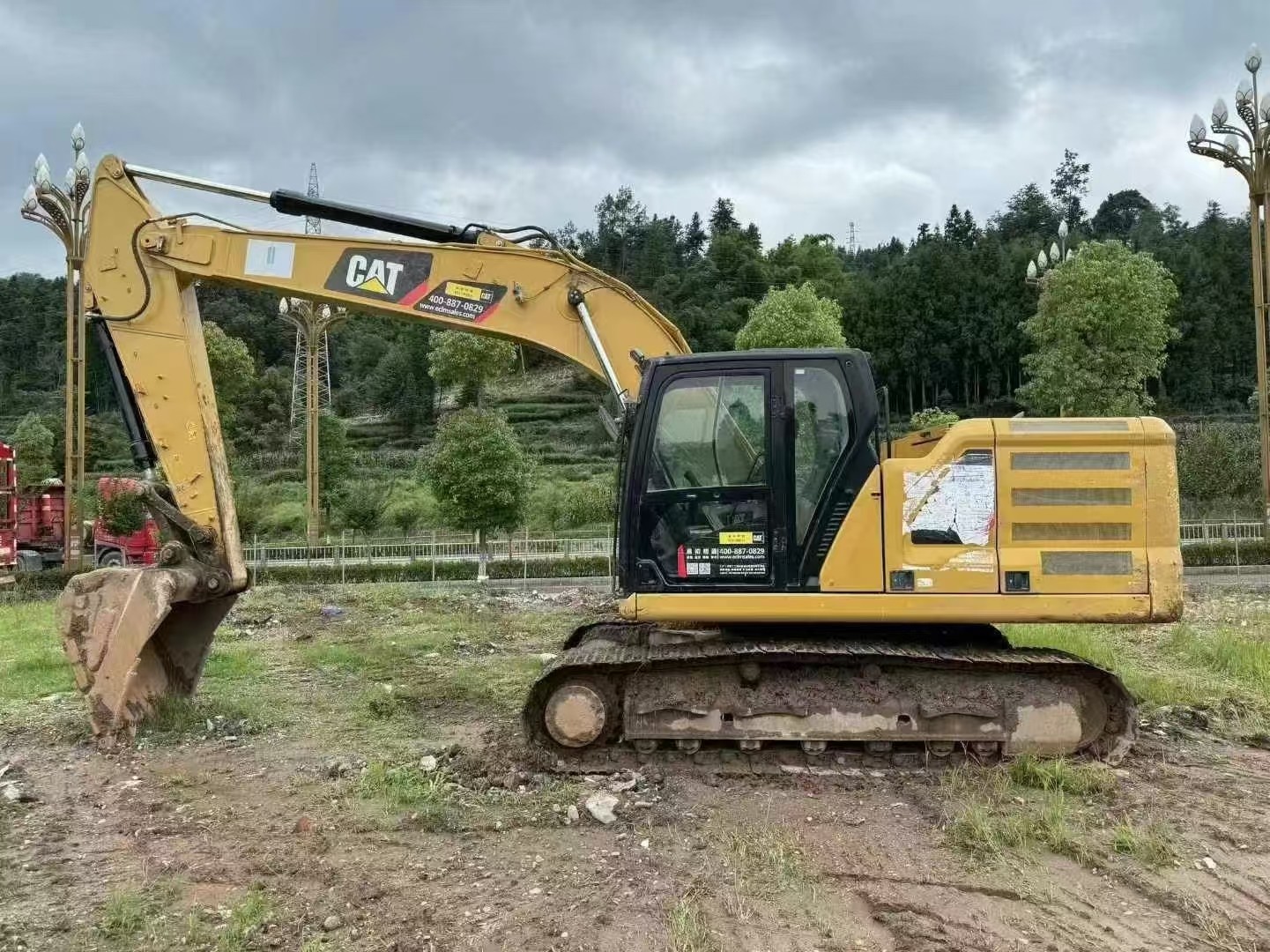

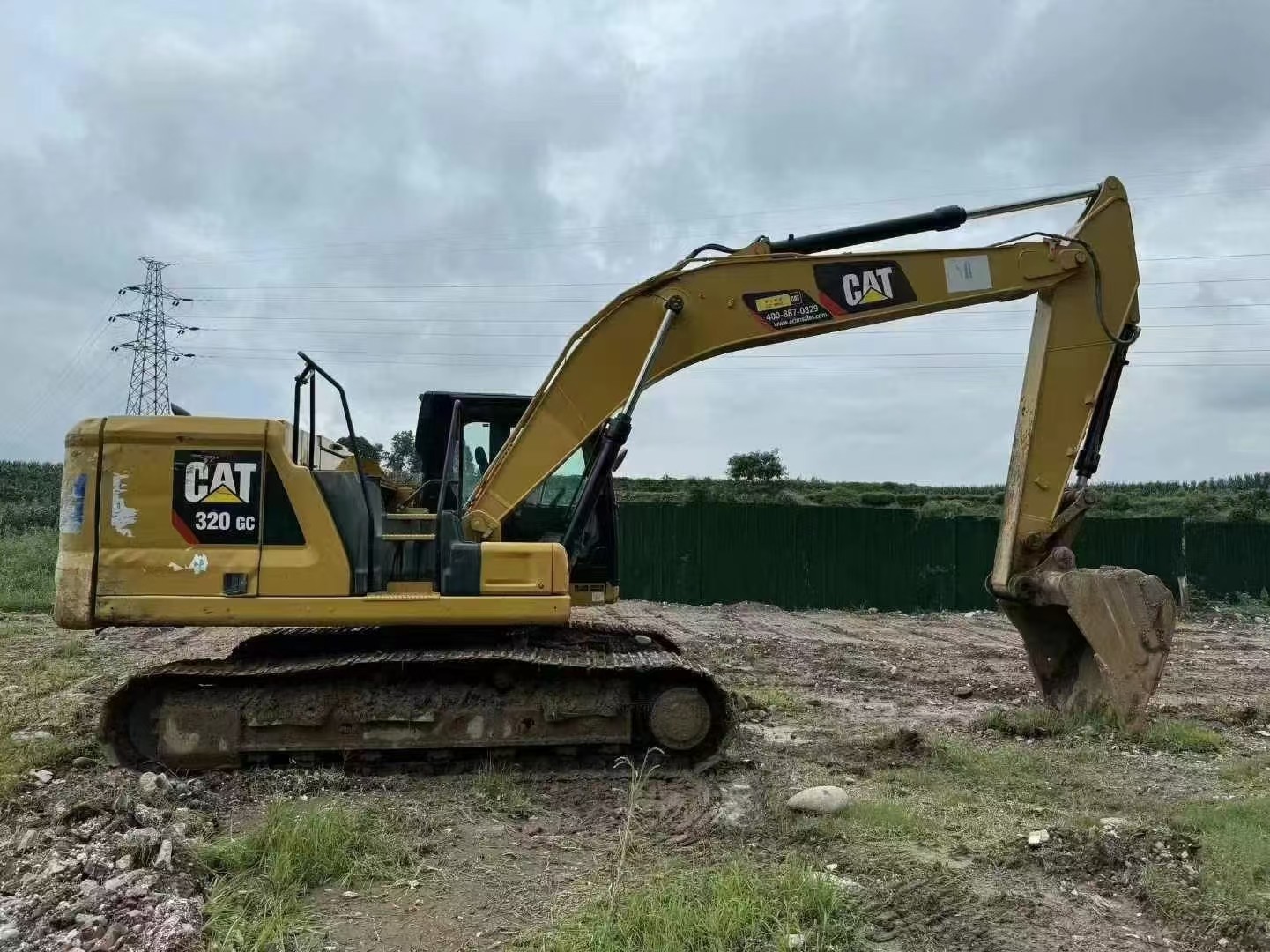

Detailed photos
