Chinese second-hand SHACMAN concrete mixer truck

Product Description

                           Chinese second-hand SHACMAN concrete mixer truck

Product Description

The technical parameters of Shaanxi Automobile Delong concrete mixer truck vary depending on the specific model and configuration. The following is a comprehensive overview of some common technical parameters of Shaanxi Automobile Delong concrete mixer truck based on publicly released information:
1, Basic configuration
Car series: Delong F3000
Purpose: Concrete mixer truck
Vehicle type: Whole vehicle
Drive mode: There are two common types: 6 × 4 and 8 × 4
Maximum speed: generally between 77km/h and 80km/h
2, Vehicle parameters
Vehicle length: Depending on the model, the length may vary, ranging from 9.345 meters to 11.4 meters
Vehicle width: generally between 2.49 meters and 2.5 meters
Vehicle height: Depending on the model and configuration, the height ranges from approximately 3.774 meters to 4 meters
Wheelbase: Different models have different wheelbases, such as 4000mm, 4375+1400mm, 1800+3575+1400mm, etc
Rated mass: varies depending on the vehicle model and configuration, ranging from 10705kg to 13.37 tons
Curb weight: also varies depending on the model and configuration, ranging from 13.7 tons to 18 tons
Total weight: such as 25000 kg, etc
3, Engine parameters
Engine models commonly include Weichai WP10.310E53, Weichai WP12.375E40, Xi'an Cummins ISM11E5 385, etc
Number of cylinders: usually 6 cylinders
Maximum horsepower: Depending on the model, the horsepower ranges from 310 to 385 horsepower
Maximum power: such as 228kW, 250kW, 276kW, etc
Maximum torque: such as 1500N. m, etc
Displacement: such as 9726mL, 11.596L, 10.8L, etc
Emission standards: National V/Euro V, National IV, etc. (Please note that National III/IV/V vehicle models are no longer licensed in China and are only used for export or domestic non road internal transportation in areas where they are not licensed)
4, Transmission parameters
Transmission models: such as 10JSD160, Shaanxi Automobile 12JS160T, Fast 9JSD180, 12JSD180T, etc
Number of gears: The number of forward gears usually ranges from 9 to 12, while the number of reverse gears is generally 2
5, Chassis parameters
**Chassis brand * *: Shaanxi Automobile Chassis
Chassis models: such as SX1250FB, SX5316GJBDT366, etc
Front axle description: such as maximum allowable load capacity of 7000kg, MAN 7.5T, etc
Rear axle description: such as maximum allowable load capacity of 18000kg, MAN16T dual stage, etc
Number of spring pieces: such as 9/12, 10/12, left 14, right 13/left 14, right 13/12, etc
6, Tire parameters
Number of tires: generally ranging from 10 to 12
Tire specifications: such as 11.00-20 18PR, 12.00R20 16PR, etc
7, Installation parameters
Mixing capacity: The mixing capacity varies depending on the vehicle model and configuration, such as 4.9 cubic meters, 5.7 cubic meters, 6 cubic meters, etc
Mixing drum speed: such as 0-14r/min
Feed speed: such as ≥ 2.7m ³/min
Discharge residual rate: such as ≤ 0.5%
Fill rate: such as 59.9%
Water tank capacity: such as 450m ³ (please note that this value may vary depending on the specific configuration, and 450m ³ may appear too large for the water tank of the mixer truck. In reality, it should be much smaller than this value)
Please note that the above technical parameters are for reference only, and specific parameters may vary depending on the vehicle model, configuration, and production year. When purchasing or using, please be sure to refer to the actual technical parameters and configuration table of the vehicle.

Product parameters table

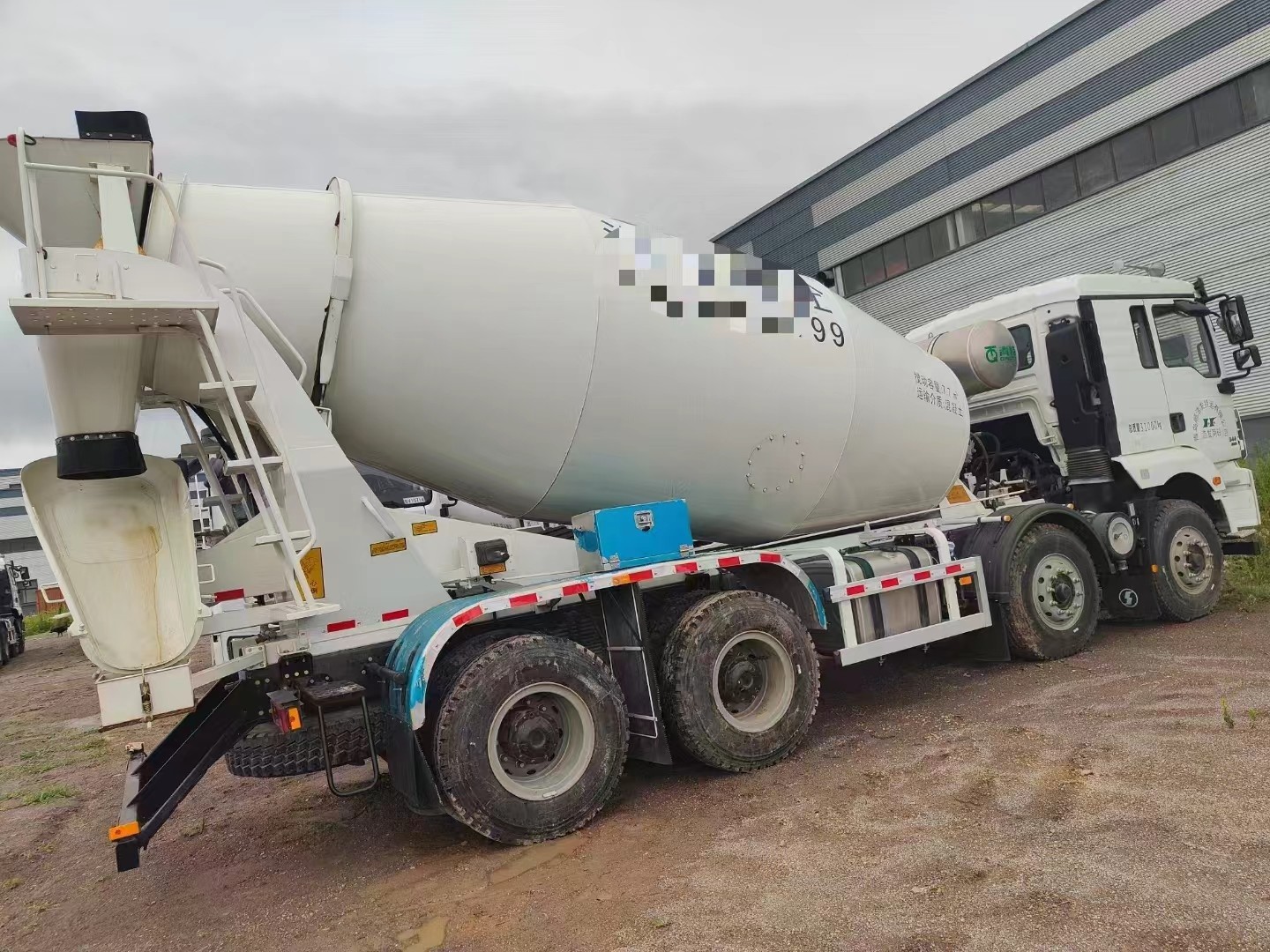

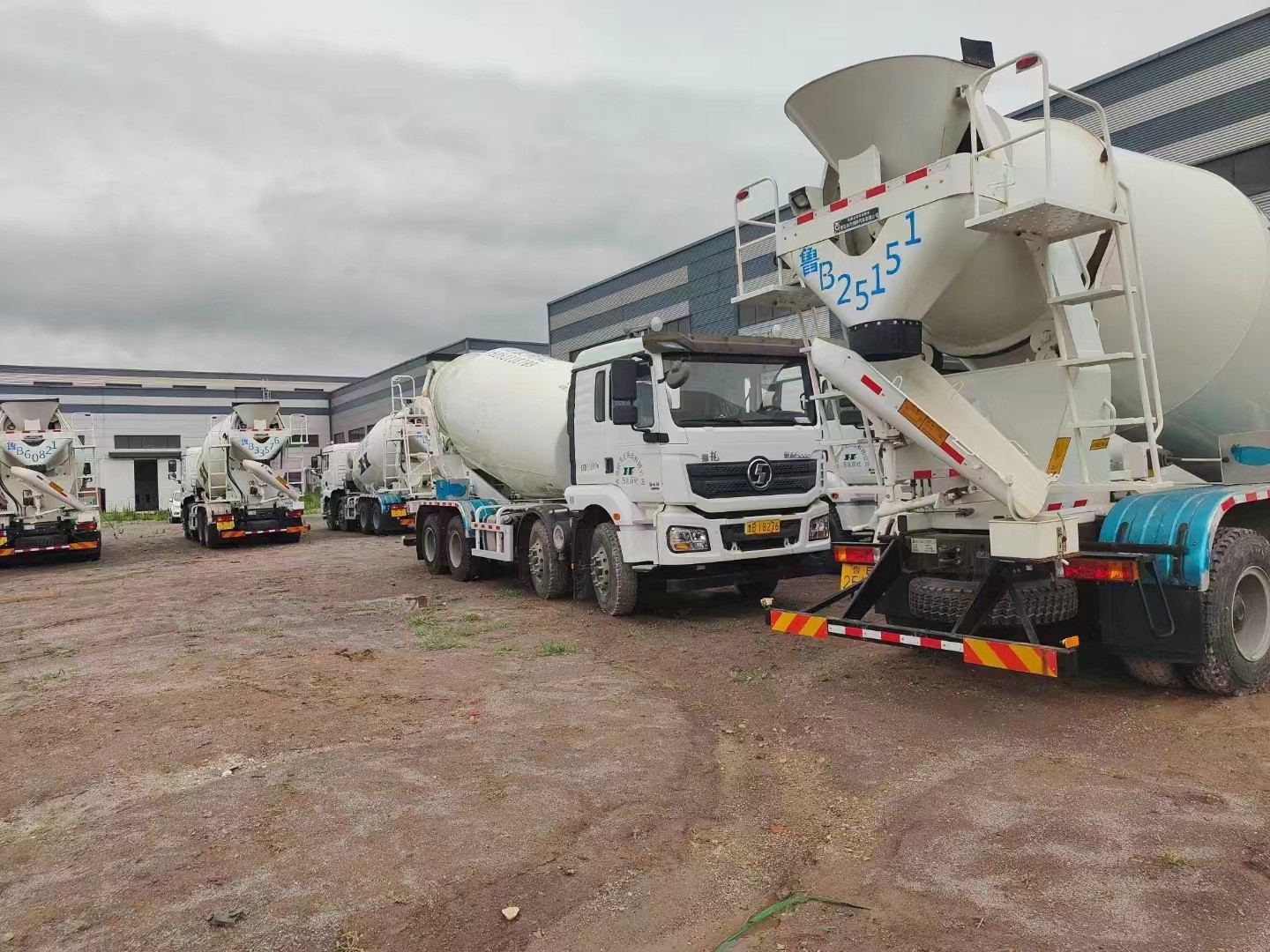

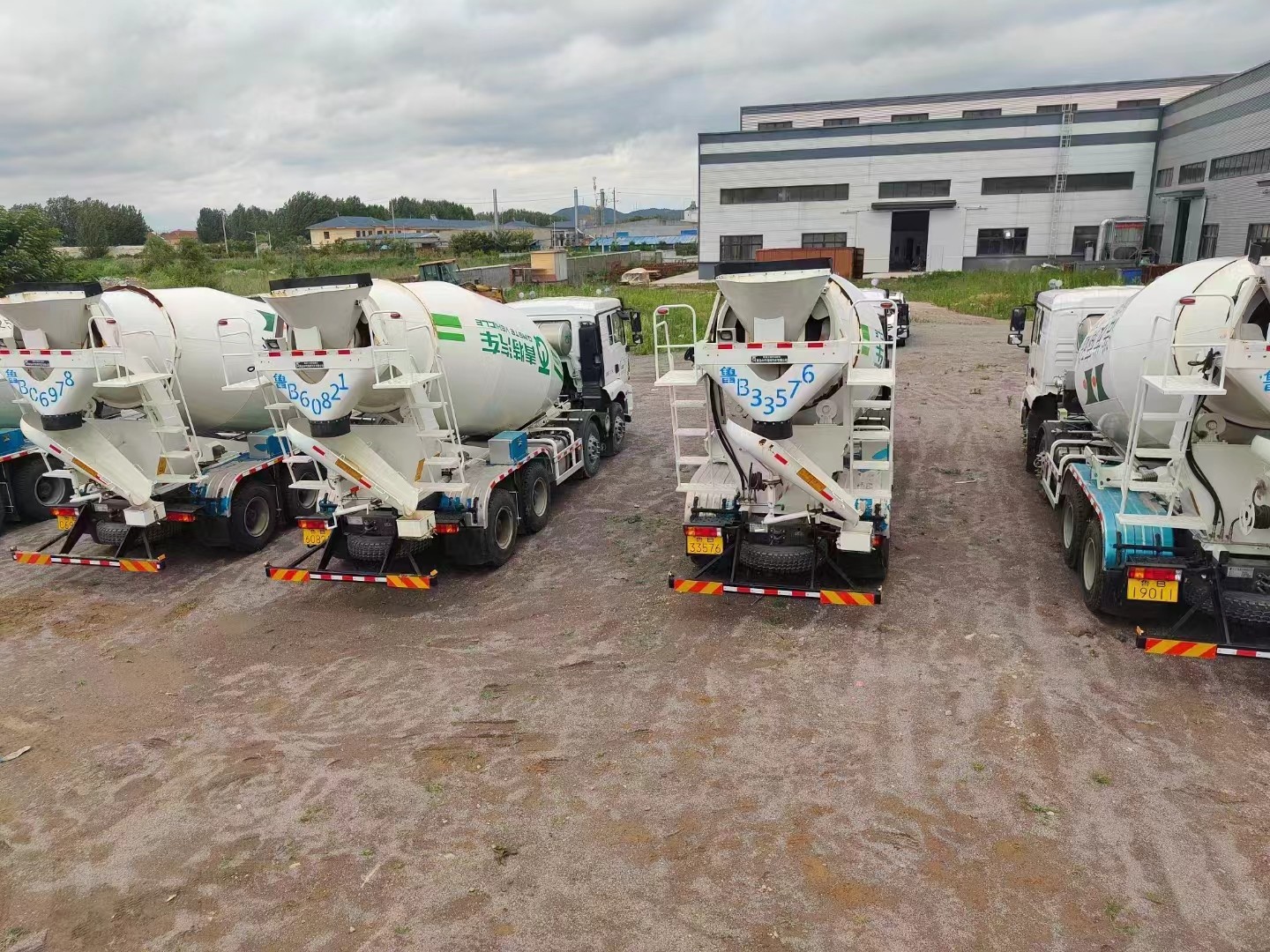

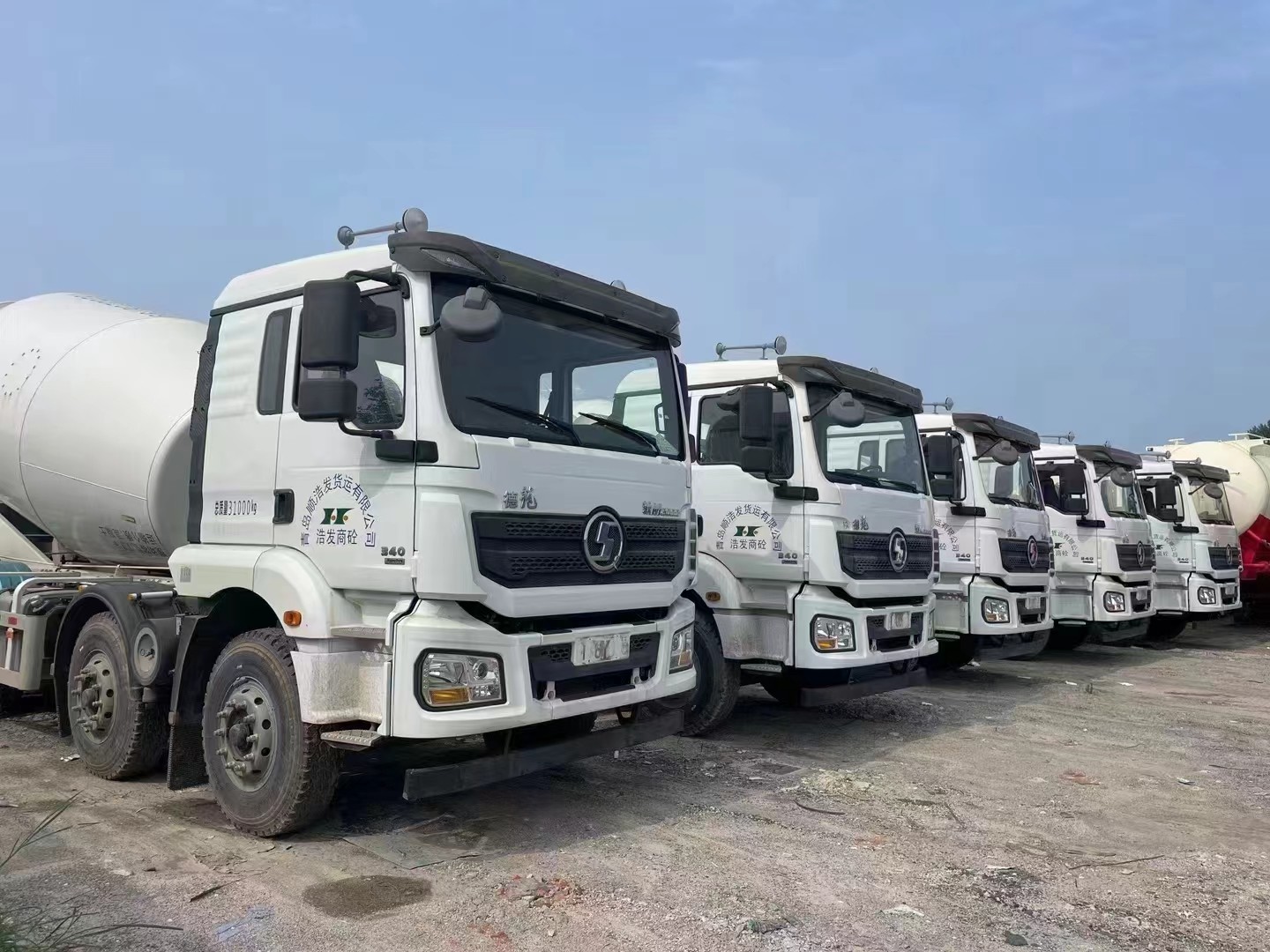

Product photo
